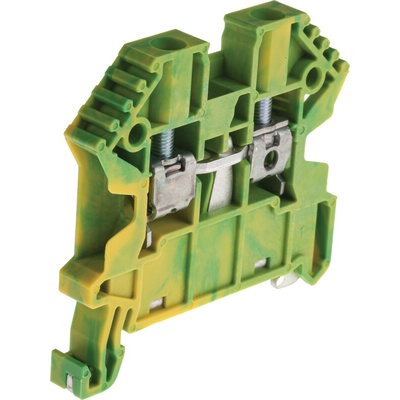

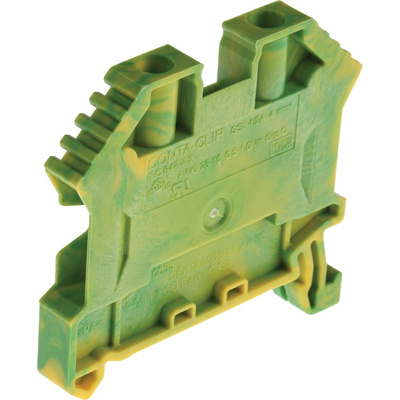

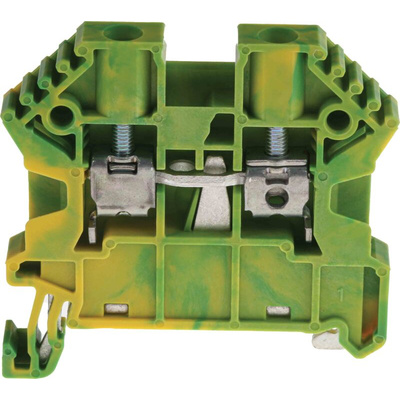

RS PRO Green/Yellow Earth Terminal Block, 4mm², Single-Level, Screw Termination

RS PRO Earth Terminal Block, Screw Termination, 4 mm² Cable

Safely ground / earth a current in a circuit with this RS PRO earth terminal block. With this component, there's no need to run a wire to the main ground / earth connection on a breaker or surge protector. With a wire connection to the base of the block in order to ground / earth the circuit, these blocks function similarly to regular terminal blocks.

These blocks boast a number of benefits over a screw system. They're pluggable, which means they can be connected up and removed more quickly and easily. They also allow for adjacent terminals of different sizes to be linked up. The terminals have been designed to easily snap onto the TS 35 DIN rails.

Made from PA6.6 polyamide material, the terminal blocks are certified UL94-V2 for fire safety. Earth terminal blocks like these are commonly found in industrial circuit boards and control panels.

Features and Benefits

• Green/Yellow
• SSL series
• Wire Size of 22 → 11 AWG
• 4 mm² cable CSA
• Single level
• Screw-down termination method
• Pitch of 6.1 mm
• Minimum operating temperature of -40°C
• Maximum operating temperature of +120°C
