RS PRO Green/Yellow Earth Terminal Block, 10mm², Single-Level, Screw Termination

RS PRO Green/Yellow Earth Terminal Block, 10 → 6 AWG, 10 mm²

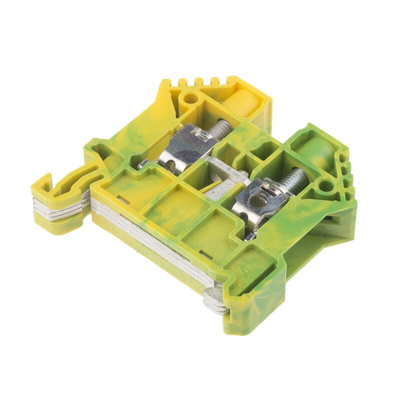

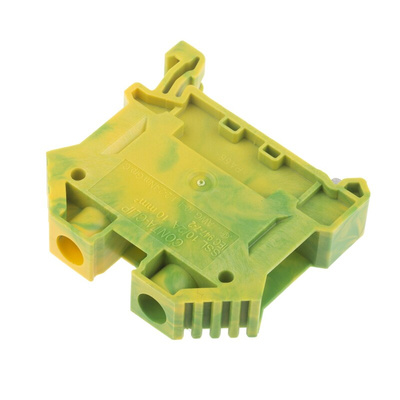

This earth terminal block from RS PRO is a feed-through DIN rail terminal. Use it with simple screw connectors to connect solid or flexible wires, with or without wire-end ferrules. It uses a pluggable insulated cross-connection system, meaning you can connect it to two adjacent terminals of different sizes or daisy-chain any number of terminals.
The terminal block clips easily onto a DIN rail without the need for additional fixings. The terminal's screw heads are mounted into the body, so the terminal's metal parts won't slip out when the terminal screw is tightened. It's suitable for a wide range of industrial settings, as it's operational at temperatures from -40°C to +120°C.
The housing is made from durable polyamide (PA) and is coloured green and yellow, for easy identification as an earth terminal. This kind of terminal is used to protect electrical units or people from magnetic and electrical fields.

Features and Benefits

• Cross-sectional area (CSA) of 10 mm²
• Green/yellow colour
• Maximum operating temperature of +120°C
• Minimum operating temperature of -40°C
• Single level
• Pitch of 10.1 mm
• Screw termination method
• Wire size of 10 to 6 American Wire Gauge (AWG)

RS Pro Datasheet
