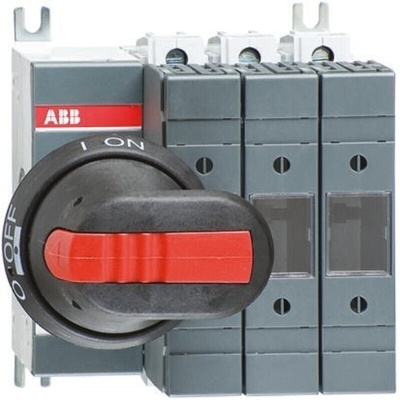

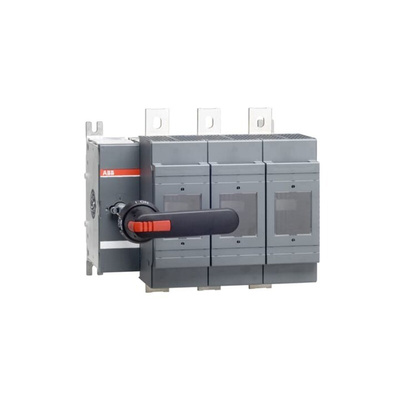

OS630D03P 1SCA022825R2830, ABB Fuse Switch Disconnector, 3 Pole, 630A Max Current, 800A Fuse Current

ABB Fuse Switch Disconnector, NH3 Fuse Size, Lug Terminals - OS630D Series - OS630D03P 1SCA022825R2830

For a quick and efficient way to cut power when you're running repairs, install this fuse switch disconnector from ABB. It comes with an easy-to-grab handle to make shutting off electricity flow a snap. The device handles currents up to 630A, meaning it's ideal for heavy-duty systems. If your current exceeds that limit, the fuse will blow and shut down your machinery entirely to prevent downstream damage. You can lock the handle in the off position to avoid accidental actuation and boost worker safety.

Features & Benefits

• Uses standard size 3 DIN fuses, so finding replacements is a walk in the park
• IP65-rated handle is dustproof and water resistant to maintain smooth operation in challenging conditions
• Shaft length is adjustable for a tailor-made fit

Applications

• Schools and universities
• Food and beverage production
• Power stations

What's the benefit of this device's lug terminals?

Lug terminals can carry high currents and offer an extremely secure connection. They're also very durable and able to withstand harsh environments with ease.

How much power loss can I expect from this fuse switch disconnector?

This component is energy efficient as it typically loses just 60W per pole, which is relatively low for high-voltage industrial systems.

ABB OS Range

A fused switch disconnector provides a cost effective means of short circuit protection, together with circuit isolation. The choice of fuse rating determines the level of protection, the maximum value is determined by the fused switch disconnector. These items have been tested in accordance with EN 60947-3.

OS Switch Fuses Data Sheet

LUL Certificate No. 2493

Application Note - OS630D03P 1SCA022825R2830

Datasheet - OS630D03P 1SCA022825R2830

Brochure - Essential Solutions Guide
