22.2618-22, Staubli Red Male Banana Plug, 2mm Connector, Solder Termination, 10A, 30 V, 60V dc, Gold Plating

Multi Contact Banana Plug

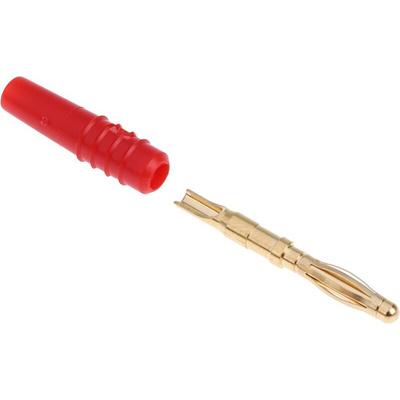

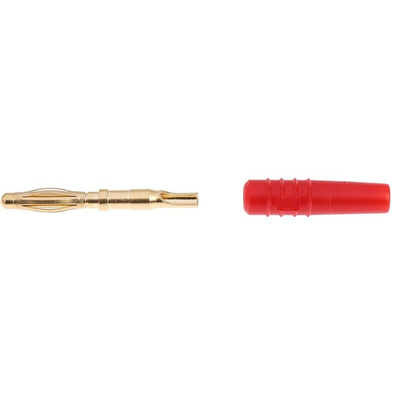

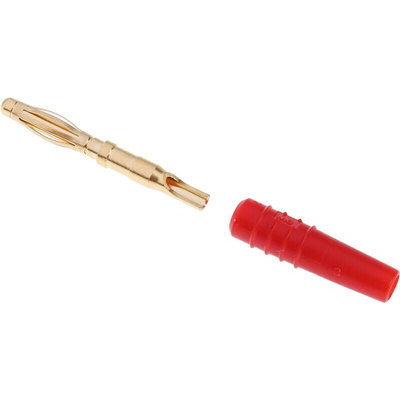

The Multi contact red banana plug is a rigid, 2mm plug with spring-loaded MULTILAM for self-assembly of test leads. These inline plugs have a rigid contact with solder bucket connection. The press-fit rigid insulator body allows for maximum cable diameter of 2.1mm. It is suitable for many applications that call for a 2mm diameter plug connector. Initially, the test plug insulator is assembled over an associated cable before soldering into the solder bucket. It is later press-fitted over the 2mm plug tang to finalise and complete the SLS2-S inline plug connector assembly. It has a voltage rating of 30VAC and 60VDC and current rating of 10A.
Included:
Assembly instructions.
Note:
Suitable for use with the LB-I2R range of panel mount sockets see 763-2926 and range.

Features and Benefits

Solder termination
Gold-plated contact
Length is 27mm

Applications

Automotive (car manufacturing plant equipment)
Motorsports
Aeronautics (plant equipment)

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

SLS205-L Data sheet
