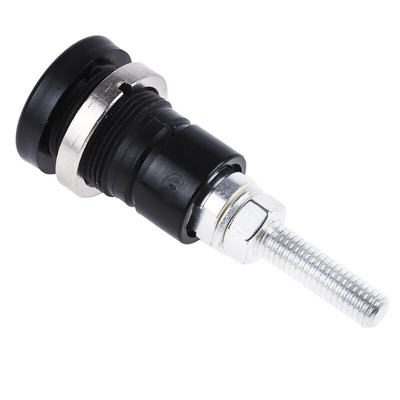

14.0010-21, Staubli Black Female Test Socket, 6 mm Connector, Screw Termination, 100A, 600V, Silver Plating

Multi Contact Safety Flush Mounting Receptacle

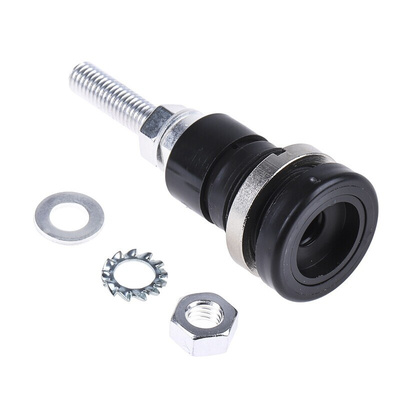

The Multi Contact black, safety panel receptacle are insulated socket designed for flush mounting in housings and panels. Mating 6mm plug with suitable locking devices can be snap-locked into the receptacle. The internal connection is (M6) threaded stud complete with nuts and washers, the external body thread of these flush mount plug connectors is M18 x 1 with an overall front face diameter of 23.5mm. It has a voltage rating of 600V and current rating of 100A.
Note:
Mates with 763-3130, 763-3168 and range, branch connector plug 763-3228 and utilises socket spanner 763-3032.

Features and Benefits

Silver-plating copper/zinc contact material
Insulation material is PP
Screw termination
Length is 63mm

Applications

Cable connections
Electronic connections

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
