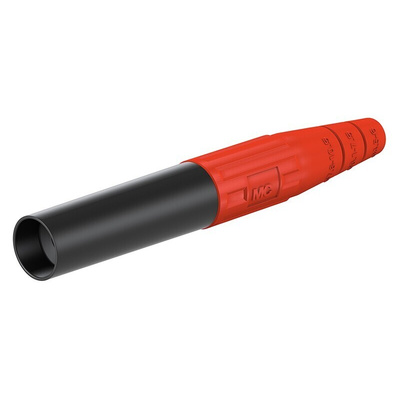

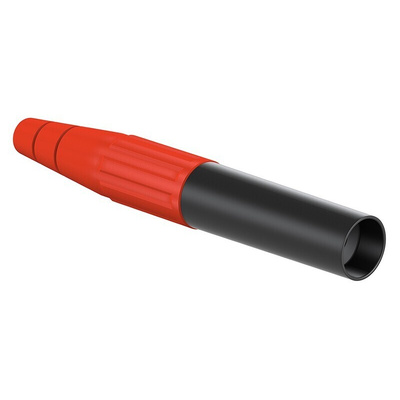

15.0017-22, Staubli Red Female Banana Socket - Crimp Termination, 600V, 80A

7633076
Номер производителя: 15.0017-22Производитель: Staubli
Цена за шт.
9774.00 руб. (С НДС) *
Количество 10+ 25+ 50+
Цена 9042.00 руб. 8307.00 руб. 7575.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Multi-Contact 6 mm Safety Sockets, 10mm Sq. Cable

Multi-Contact 6 mm safety socket features a crimp connection with a cable capacity of up to 10.5mm diameter, for mating with KST6AR-N series of plugs or the 6 mm safety flush mounting plugs, utilised with a flush mounting plug it acts as an appliance connector and with the plugs as an inline coupling. The insulator body allows for a maximum cable cross section of 10.5 mm2, suitable for many applications that call for a 6 mm diameter socket connector. The socket connector insulator is assembled over an associated cable prior to assembly, it is then crimped and the insulator pushed over the crimped article to finalise and complete the KBT6AR-N inline socket connector assembly.

Note

Mates with 763-3036 , 763-3130 , 763-3168 , 763-3196 and range and branch connector plug 763-3228

Техническая спецификация
pdfSafety Sockets KBT6AR-N/...-S Data Sheet
Длина:
100.5мм
Концевая заделка:
Crimp
Материал изоляции:
TPE
Материал контактов:
CuZn/Cu
Номинал тока:
80A
Номинальное напряжение:
600В
Покрытие контактов:
Ag
Размер разъема:
6 мм
Род:
Female
Тип:
Banana Socket
Цвет:
Красный
