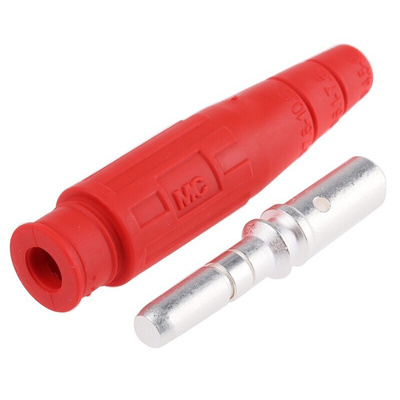

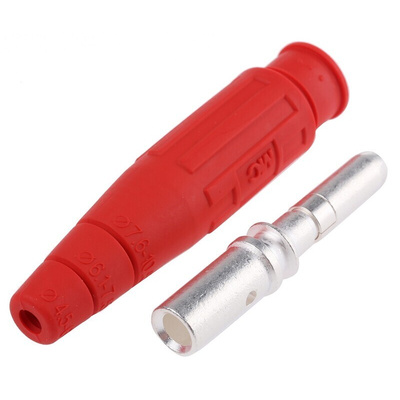

15.0001-22, Staubli Red Male Test Plug, 6 mm Connector, Crimp Termination, 80A, 600V, Silver Plating

Multi-Contact 6 mm Test Plugs, Crimp Connection, 10mm² Cable

Multi-Contact KST6AR-N series rigid inline 6 mm plug connectors are for the self assembly of test leads to your own specification and lead application. These snap-in lock 6 mm diameter gold plated inline plugs have a rigid contact with crimp connection and the insulator body allows for a maximum cable cross section of 10.5 mm², suitable for many applications that call for a 6 mm diameter plug connector. The plug connector insulator is assembled over an associated cable prior to assembly, it is then crimped and the insulator pushed over the crimped article to finalise and complete the KST6AR-N inline plug connector assembly.

Note

Mates with 763-3004, 763-3073, 763-3012 and range. And socket branch adaptor 763-3225

Plugs KST6AR-N/... Data Sheet
