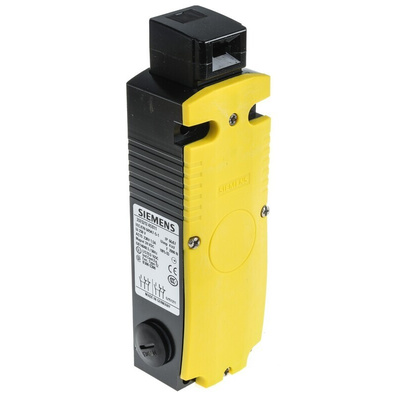

3SE5312-0SB11, Siemens 3SE5 Series Solenoid Interlock Switch, Power to Lock, 24V dc

Siemens Solenoid Interlock Switch

The Siemens 3SE5 power to lock solenoid interlock switch has a supply voltage rating of 24VDC. It has 2NC safety and 1NOauxiliary contacts. This has a separate actuator and an additional electromagnetic tumbler is designed for protective doors that have to remain closed while a machine is being shut down. An integrated auxiliary magnet in the switch keeps the door locked until a specific signal is received. A safety mechanism to prevent unwanted closing ensures that the NC contacts of the magnet never close even when the door is open. This switch can be released manually using an auxiliary release mechanism if, for example, access is required following a power failure or during installation.
Note
Actuators must be purchased separately.

Features and Benefits

Higher locking forces of 2600N on the metal housing
2 x 3 contact blocks are included as standard, contact are provided for magnet and actuator monitoring
Innovative ASIsafe solution with an integrated module
Contact monitoring and magnet control draw on ≤170mA
Thermal current is 10A
A number of additional release mechanisms to handle any application: auxiliary release mechanism, lock release, escape release and emergency release
Actuator heads can be rotated in 4 x 90° increments
5 directions of approach (4 x lateral + 1 x front)
LED status display
Cable entry type is 3 x (M20 x 1.5)

Certifications

IP66 rated
IP67 rated
CCC certified
CSA certified
EAC certified
CE certified
UL approved
SIL 3 IEC 62061
IEC 60068-2-27
