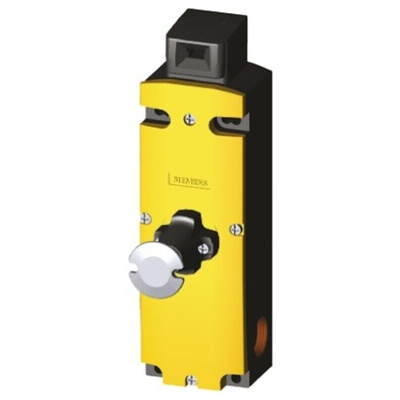

3SE5312-0SG11, Siemens 3SE5 Series Solenoid Interlock Switch, Power to Lock, 24V dc, Actuator Included

Siemens Solenoid Interlock Switch, 24V DC Supply Voltage, 53mm Length - 3SE5 Series - 3SE5312-0SG11

Keep personnel and processes safe with this solenoid interlock switch from Siemens. You can use it to control entry to sensitive or dangerous areas while potentially dangerous kit is at work. The switch can be set to only allow a guard to open only when it's fully safe. For example, if the power to cutting equipment is stopped, access will only be given once the blade stops spinning. The unit accepts a standard supply voltage of 24V DC, so it's widely compatible with industrial systems such as CNC machinery in workshops or packaging equipment in warehouses.

Features & Benefits

• 30g/11ms shock resistance and 0.35mm/5g vibration resistance for smooth running under challenging conditions
• Compact dimensions of 43.8 (D) x 54 (L) x 184.1mm (D) for use in tight areas
• Operates reliably in a temperature range between -25°C and +60°C
• M20 conduit entry for easy installation and maintenance
• Repeat accuracy of 0.05mm for reliable locking and unlocking every time

Is this solenoid interlock switch waterproof?

Yes, it has an IP67 rating, indicating protection against short periods of immersion and high-pressure jets of water from any direction.

Solenoid switch,escape release,24Vdc
