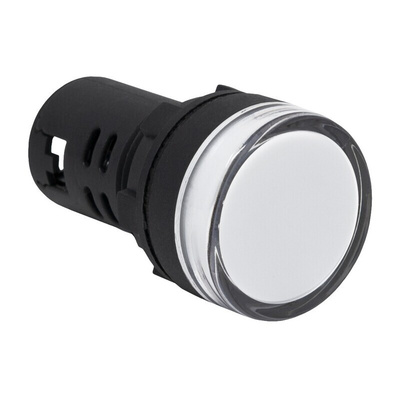

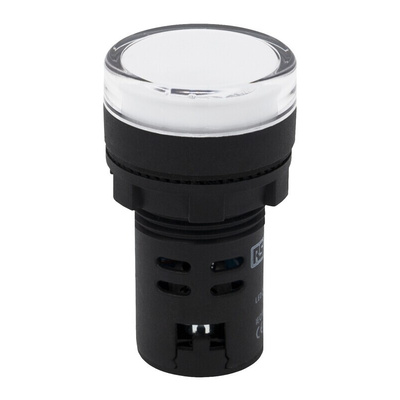

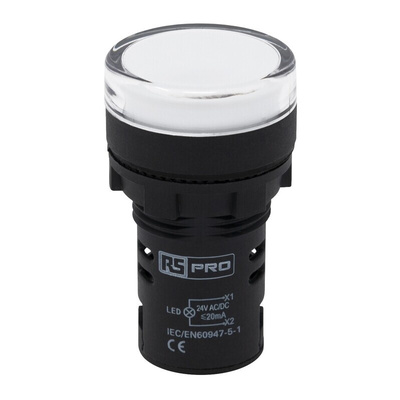

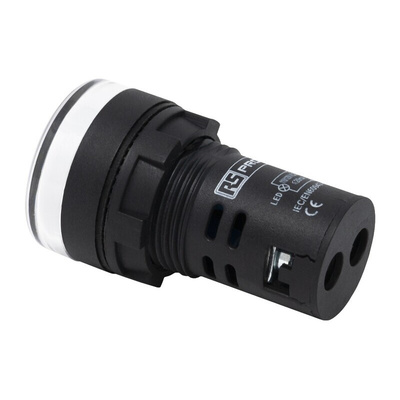

RS PRO, Panel Mount White LED Pilot Light, 22mm Cutout, IP65, Round, 24V ac/dc

RS PRO White LED Pilot Light, 22 mm Cutout, IP65, 24V ac/ dc

Looking for a reliable way to monitor a piece of equipment? These LED pilot lights can be used anywhere you need to check the functionality of an electrical system or component.
Multi-chip technology ensures a steady glow that lasts for up to 30,000 hours. With a brightness of ≥60 cd/m³, each pilot light is brighter than incandescent bulbs, so can be easily seen in almost all light conditions. Their 24V ac/dc rating means they're a powerful option for long-term monitoring of electronics.
These pilot lights have received an IP65 rating for their resistance to dust and pressurised water jets. An efficient design with panel-lock nuts and screw-clamp terminals makes for fuss-free installation and connection. You'll find an LED pilot light anywhere from control panels in an industrial workspace to a car dashboard or even a small home appliance.

Features and Benefits

• Brighter than standard incandescent bulbs


• White LED


• Quick and easy installation


• IP65 rated so they are dust-tight and protected against low-pressure water jets


• Cut-out diameter of 22 mm


• Voltage rating of 24V ac/dc


• Minimum operating temperature of -25°C


• Maximum operating temperature of 55°C


• Panel mounting

RS PRO Datasheet
