Megger MIT525 Insulation Tester, 250V Min, 5000V Max, 10TΩ Max, CAT IV, Измеритель сопротивления изоляции

Megger Insulation Tester

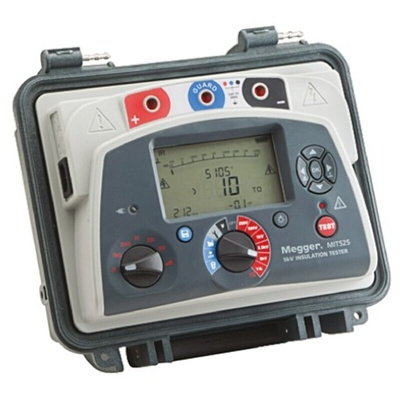

The Megger MIT525 5kV lightwEight and compact insulation tester are used for diagnostics testing and maintenance of high voltage electrical equipment. It measures insulation resistance up to 10Tohm and offers tests such as polarisation index, dielectric absorption ratio, step voltage, dielectric discharge and ramp testing. This device has a lithium-ion battery and the large, clear and easy to read display makes it suitable for use in sunlight and poorly lit environments. The information displayed by it includes resistance, voltage, leakage current, capacitance, battery status and time constant. The elapsed time is also displayed constantly, which reduces the need for a separate timer.
Supplied with

User guide CD, power lead, 3m leadset x 3, medium insulated clips, USB cable, PowerDB Lite software

Features and Benefits

PI, DAR, DD, SV and ramp test
Improved productivity : Operates from line power/mains if battery is dead
Li-ion battery for extended capacity, rapid charge
Advanced memory with time/date stamp
Unique locking HV insulated plugs
None detachable clips for safety with capacitance
Screened options for high noise environments
High-quality silicon double insulated cable

Applications

Domestic sites
Commercial sites
Industrial sites

Certifications

CATIV 600 V
