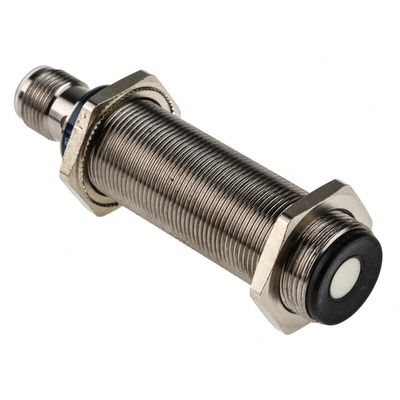

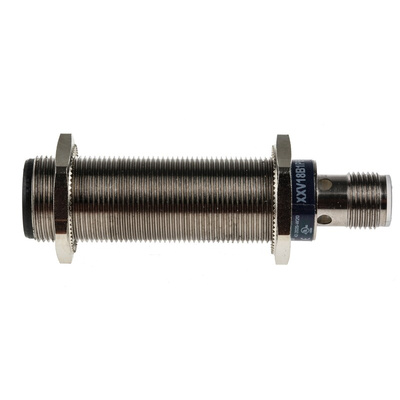

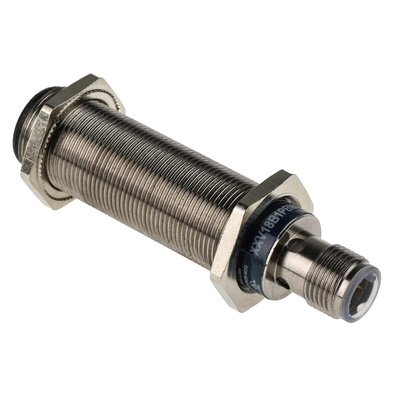

XXV18B1PBM12, Telemecanique Sensors Ultrasonic Barrel-Style Proximity Sensor, M18 x 1, 3 → 50 mm Detection, PNP Output, 12, Датчик

Cylindrical Ultrasonic Sensors

The OsiSense XXV series of ultrasonic sensors are long distance proximity sensors that can detect up to 50 mm in distance regardless of colour, material or conditions. These telemecanique ultrasonic sensors are ideal for use in packaging, handling and conveying applications.

24 Vdc 3-wire
No sensitivity adjustment required
Easy to install
Output indication LED
M12 connector, 2m / 5m / 10m cable versions available
Designed to operate in harsh environments

OsiSense

Osisense ultrasonic sensors are ideal for use in many applications as detection of any material including metal, plastic, liquid and any colour is possible, the main types of applications are:

Food and Beverage processing.

• For liquid level detection without contact with the liquid


• Detection of powders


• Detection of glass bottles

Packaging.

• Detection of objects passing on a conveyor.

Automobile industry.

• Monitoring presence of car windscreens.

XXV18B1PBM12 photo-electric sensor

CAD Drawing_XXV18B1PBM12

XX Range Catalogue

Brochure
