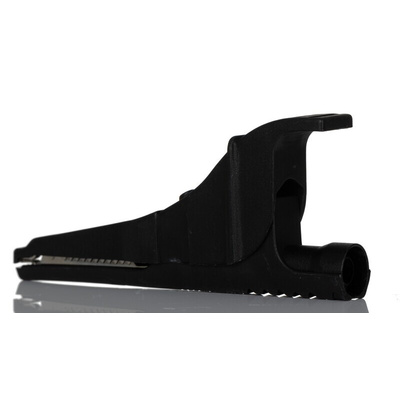

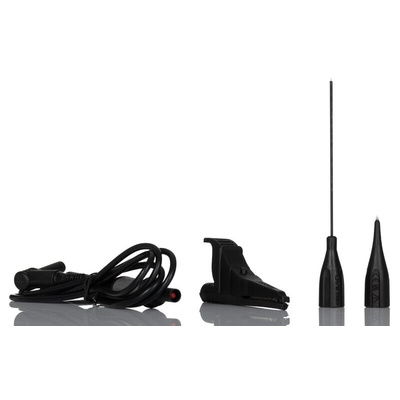

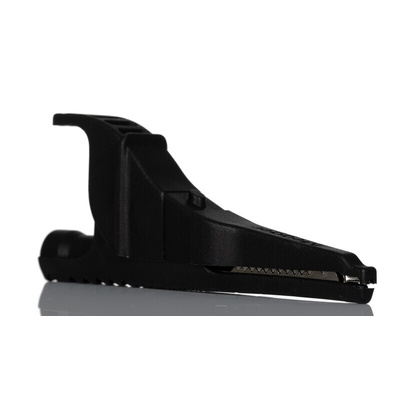

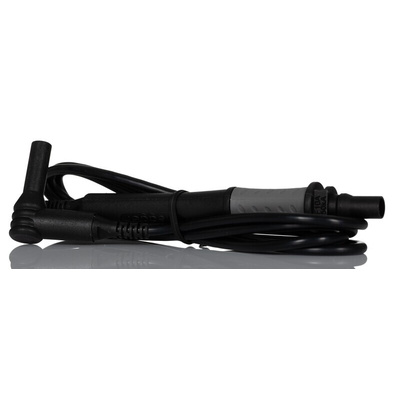

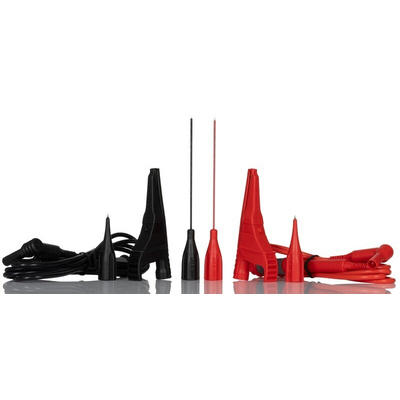

1002-015, Megger Fuse Test Lead Set for TDR1000/3P Handheld TDR

7642831
Номер производителя: 1002-015Производитель: Megger
Цена за шт.
26400.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Megger TDR 1000/3

The Megger TDR1000/3 is a hand held, compact Time Domain Reflectometer for locating faults on metallic cables. It has a minimum resolution of 0.1 m/0.3 ft and a 5 km/15 kft maximum range depending on velocity factor selected and cable type.
Four output impedances are available (25, 50, 75, and 100 Ω) and a velocity factor between 0.2 and 0.99 will meet any cable test requirements.The TDR1000 has a simple selection option which together with a 4 way control switch offers an intuitive operation for the user.

The TDR1000/3 is supplied with a miniature clip lead set (764-2822) ready to test telecom circuits. A fused test lead set for testing power circuits is available separately (please see RS 764-2831)

Dual cursors providing instant indication of distance between two points
AUTO set up for instant use
Ultra fast pulse for near end fault identification
Trace HOLD feature to allow comparison between cables
IP54 rating offers real life working
Designed for use on all metallic cable pairs
Backlit graphics monochrome LCD (256 x 128)
Adjustable display contrast
Resolution to 0.1 m
For use on Telecom TNV-3 circuit, or 150V CAT IV power circuits
Power blocking filter not required
Environmental protection to IP54
Auto selected output impedance (between 25, 50, 75 and 100 Ω)
2ns pulse for near end fault location
AUTO option selecting gain and pulse for each range
Display distance in metres or feet
Uses five AA (LR6) primary cells (supplied)

Supplied with

5 x AA batteries, hard carry case, miniature clip test lead set, user guide CD

Техническая спецификация
pdfTDR500/3 Handheld TDR Data Sheet
pdfTDR1000/3 Handheld TDR Data Sheet
pdfTDR1000/3P Handheld TDR Data Sheet
Для использования с:
TDR1000/3P Handheld TDR
Тип аксессуара:
Fuse Test Lead Set
