T0053429399N, Weller WXD 2020 Desoldering Station 200W, 230V, Паяльная станция

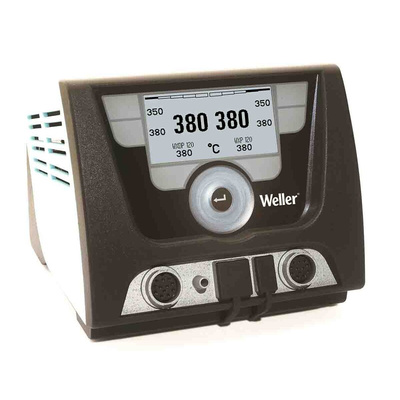

Weller WXD 2020 Soldering/Desoldering Station

Introducing the WXD 2020 Soldering and Desoldering Station from Weller. This professional 2-channel soldering station is supplied with WXDP 120 Desoldering Iron & WXP 120 Soldering iron but it's also compatible with all WX series tools and has an output of 255W. The unit ensures maximum temperature stability and accuracy with a ±2ºC temperature stability and a temperature accuracy of ±9ºC. The Weller WXD 2 features a high-quality touchscreen display made of glass, from where you can choose your custom settings. There is also a click wheel and a confirm button and a USB port for parameter configuration and data logging. The USB port supports all standard USB sticks. The WXD 2 soldering station is also ESD safe. This soldering station is energy efficient and can help with cost savings. Featuring a sensor that monitors use, this soldering station will automatically adopt a standby mode when not in use. The WXD 2 also has a very low operating temperature of +380 °C compared to similar models with operating temperatures up to +550 °C.

Features and Benefits:

WXD 2 Control Unit:
• High Powered Dual Port Digital Power Unit, 120 V /240W
• Very fast heat-up time

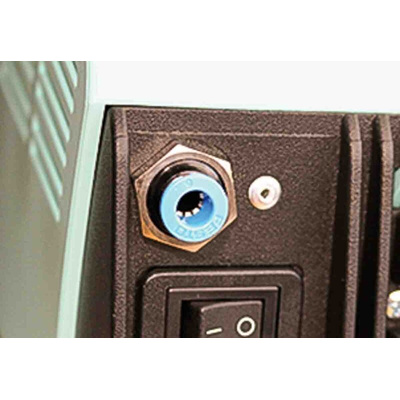

• External compressed air supply

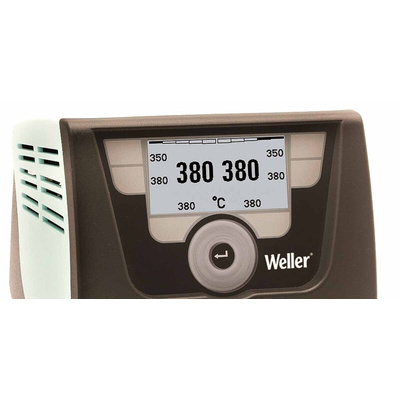

• Robust, chemical and temperature resistant glass touchscreen with multilingual menu
• Turn-and-click wheel with entering key
• 6 touch keys
• Automatic recognition of tool connected

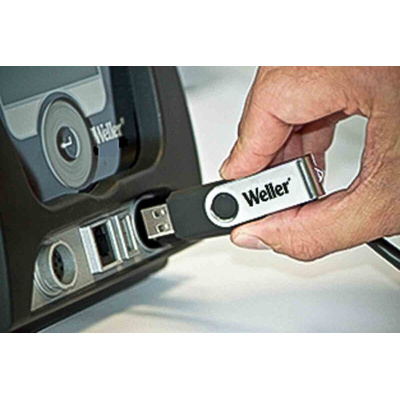

• Multi-purpose USB port for data logging, configuration and updates
• Versatile Connectivity Options for soldering/desoldering irons, tweezers, heating plates, fume extraction, etc.
• A USB port and user-friendly interface allow easy firmware update and parameterisation options
• Digital LCD display making it easy to see the settings and readouts regardless of the environment
• ESD safe
WXDP 120 Desoldering Iron:
• Fast heat-up time in just 35s (150°C to 350°C)
• Vacuum ON/OFF finger button located on the soft-grip handle
• Bayonet fitting solder cartridge can be changed quickly and easily, minimising the risk of burns
• A long length of XDS nozzle and disposable solder cartridge remove the need for cleaning
• Energy-saving motion sensor ensures that power is only used when the tool is in use
• Supplied complete with WDH 70 safety stand
WXP 120 Soldering Iron:
• Intelligent hybrid soldering iron 120 W, 24 V
• Ideal for small and large components (High Mass) with high energy demand
• Allrounder for WX stations
• Parameter memory such as standby temperatures, automatic switch-off time
• Motion sensor for enhanced energy efficiency
• Visual process control through LED signal function
• Compatible with XT soldering tips
• Power Response heating technology with improved sensor position
• Fast reaction time

Typical Applications:

Soldering / Desoldering Stations are used to work and rework solder in all manner of applications, particularly in repairing or building PCB circuit boards with SMD and through-hole components. They are commonly used in electronic prototyping and production, and any application where a circuit board component might have to be removed or adjusted. Soldering / Desoldering Station are often used by:
• Engineers
• Electricians
• Metalworkers
• Jewellers
• Home inventors

FAQs:

Is this soldering station ESD safe?
Yes, this soldering station is ESD safe. While glass can build up a static charge, the integrated glass display on this soldering station is completely ESD safe.
Can I use other tools and soldering irons (other than those supplied) with this station?
Yes, this soldering station is compatible with tools in the WX series from Weller, including a range of soldering irons, desoldering irons and desoldering tweezers. Further accessories such as heating plates, solder baths and solder fume extractors are available. These are controlled from the main power unit.
Can I use the desoldering iron horizontally and vertically?
The WXDP 120 desoldering iron supplied with the station is only suitable for horizontal applications. The WXDV 120 model can be used for vertical application but is sold separately. See 801-4741 (without stand) or 801-4748 (with stand).
Where is it used?
The WSM 1C soldering station can be used in many manual soldering applications, including automotive, aerospace and medical industries. Thanks to the ESD specifications, it is the perfect station for use in laboratories, repairs, assistance and in the production line.
Does it display temperature in Centigrade and Fahrenheit?
Within the menu navigation, you are able to make your choice of the temperature scale.

Note

Please be aware solder wire is not included with this Soldering Station. Why not try RS brand Solder wire? 756-8884

Supplied with
type":"Supplied with",

WXD 2 Power Unit, WXDP 120 desoldering iron, WXP 120 soldering iron, safety rests, UK Plug and Type C EuroPlug

Soldering - Weller

Safety Information - EN / DE / ES

WX Quick Start Guide

WXD2 Station User Manual

57 Page ESD Control Selection Guide

Datasheet
