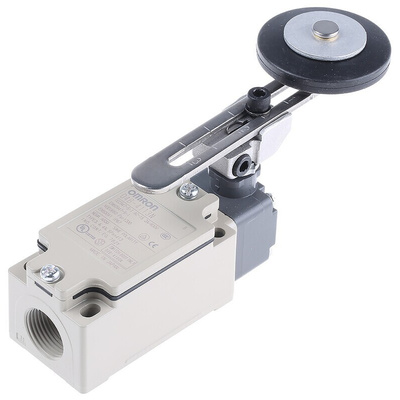

D4B-4113N, Omron D4B-N Series Roller Lever Interlock Switch, NO/NC, IP67, DPST, Die Cast Aluminium Housing, Концевой выключатель

Omron Limit Switch

The Omron D4B-N series snap action limit switch has 1NO/1NC contact configuration and a resin roller lever actuator. It has a screw connection and 1x M20 connection. This switch is equipped with a mechanism that indicates the applicable operating zone, as well as push-button switching to control left and right motion. The housing is made of metal.

Features and Benefits

Contact rating is 10A continuous

Direct opening mechanism
Accurate switching with safe operation via direct drive positive contact opening even with metal deposition between the mating contacts
Head seal structure strengthened to improve seal properties
4-position turret head
Operating temperature ranges between -40°C to 80°C
Minimum mechanical life of 30000000 cycles

Certifications

EN50041
EN60204-1
EN1088
UL508
CSAC22.2 No. 14
CQC certified
GB14048.5
EN60947-5-1
