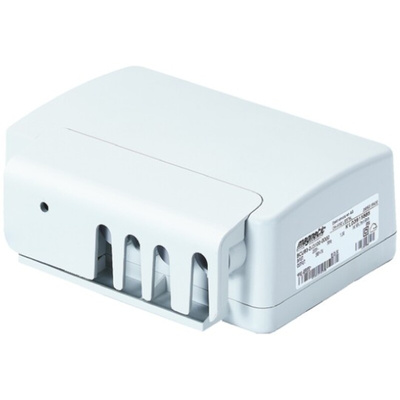

BCU83-2H-3100-000 MAX30, Ewellix Makers in Motion Control Unit for Use with MAX30 Series, 170mm Length, 230 V ac

SKF MATRIX Series MAX Linear Actuator Controller

The Matrix series MAX-3 channel controller (BCU control unit) can accommodate up to three SKF 24 V dc linear actuators. The Controller features a built-in power supply and incorporates microprocessor technology. It also offers three motor outputs (DIN8) for actuators, and an HD15 input for the Hand Switch (764-3468). The SKF Hand Switch plugs directly into the BCU Control Unit. The Matrix Series MAX Controller draws little current while on standby and has been designed for a long service life. It is lightweight, compact, incorporates overload and over-temperature protection, and is easy to keep clean

Features and Benefits

•Compact 3-channel actuator control unit
•Single fault safety
•Overload and over-temperature protection
•Easy to clean
•Low standby Current
•Long lifetime – 100,000 cycles

Product Application Information

Approved for medical applications.

Approvals

EN 60601-1 / UL 60601-1

SKF Easy 3, CARE 33, MATRIX, CASM and CAHB Actuators

Compact design
Overload protection
Various stroke lengths and movement of loads up to 50kg
Ideally suited to opening and closing doors, flaps and windows which are not within easy reach of users
Can be operated without limit switches
