EHA33-23M30N-000 MAX30, Ewellix Makers in Motion Hand Switch for use with MAX30 Series - 154mm Length, 50 mA, 12 V dc

SKF MATRIX Series MAX Linear Actuator Handset

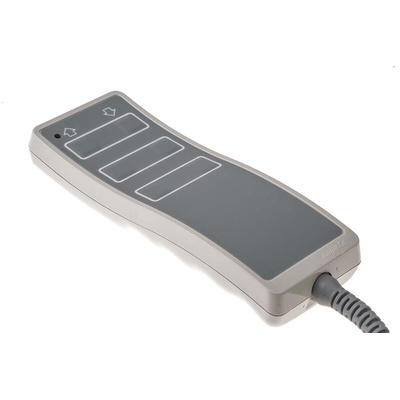

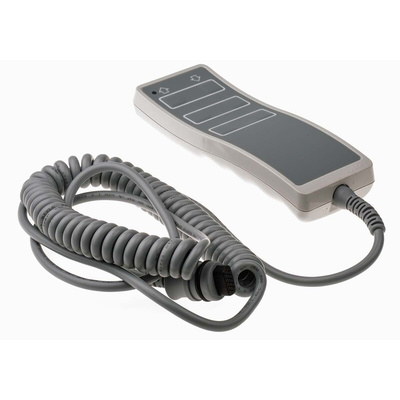

The robust, ergonomically designed EHA-3 is a handset for the Matrix Series MAX linear actuators. It incorporates clearly-marked tactile buttons, a D-Sub15 HD connector, and is rated to IP67. The handset plugs directly into the Controller (764-3459), and can be used with up to three 24 V dc MAX linear actuators.

Features and Benefits

•Easy to control
•3 channels

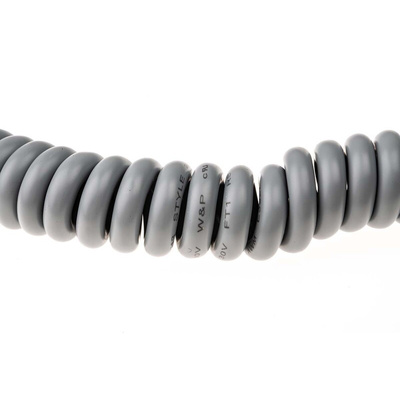

•Coiled cable 1.3 m / 2.3 m

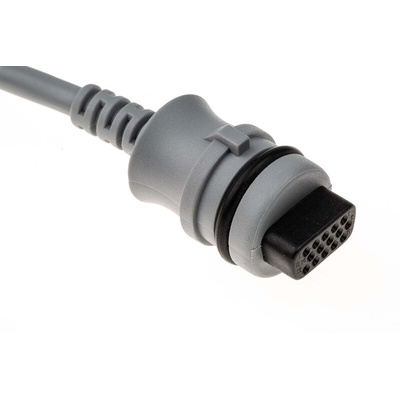

•High density D-Sub 15p

Product Application Information

Designed for use with the MAX-3 series of actuators.

SKF Easy 3, CARE 33, MATRIX, CASM and CAHB Actuators

Compact design
Overload protection
Various stroke lengths and movement of loads up to 50kg
Ideally suited to opening and closing doors, flaps and windows which are not within easy reach of users
Can be operated without limit switches
