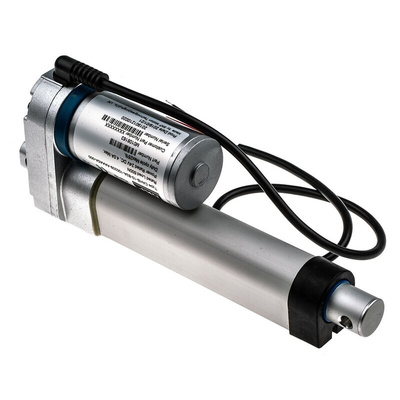

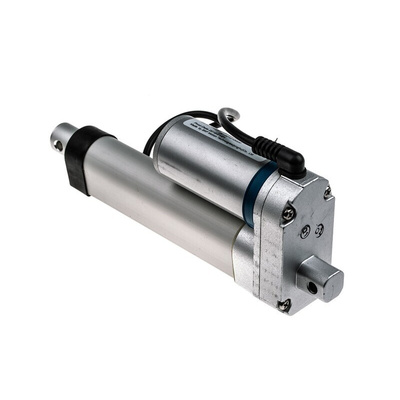

CAHB-10-B3A-100209AAA000-000, Ewellix Makers in Motion Micro Linear Actuator, 100mm, 24V dc, 500N, 16mm/s

Miniature Electric Linear Actuator, 24V DC, 500N Max Load - CAHB-10-B3A-100209AAA000-000

Looking for a way to automatically control the movement of parts in your setup? This electric linear actuator uses a screw drive mechanism to push, lift or slide objects as your system requires. It’s fitted with a DC (direct current) motor which quickly converts electrical energy to mechanical action for rapid actuation. The 100mm retractable shaft can move at a maximum speed of 16mm/s (millimetres per second), ensuring fast and efficient performance. As you can fit this linear actuator vertically or horizontally, it's a versatile choice.

• Self-locking when an action is complete to ensure user safety
• Wide operating temperature range between -40°C and +85°C for use in industrial environments
• Lubricated parts ensure a long service life
• Can be operated without limit switches to suit your system needs

Applications

• Highway maintenance equipment
• Food and beverage production
• Pharmaceutical factories

Where can I use this actuator?

This actuator is ideally suited for hard-to-reach openings, such as doors or windows. Its linear shape and flexibility of orientation mean you can use it to slide, tilt or lift objects.

SKF Easy 3, CARE 33, MATRIX, CASM and CAHB Actuators

Compact design
Overload protection
Various stroke lengths and movement of loads up to 50kg
Ideally suited to opening and closing doors, flaps and windows which are not within easy reach of users
Can be operated without limit switches

CAHB10B3A-100209AAA000000 Datasheet
