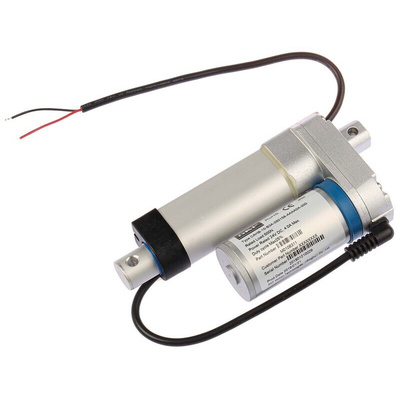

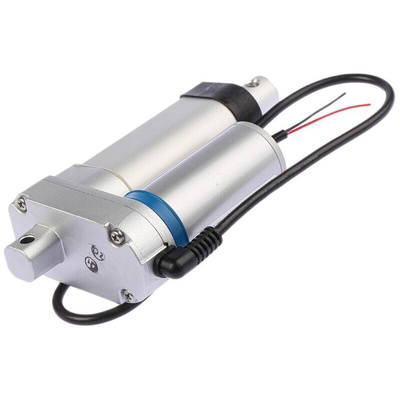

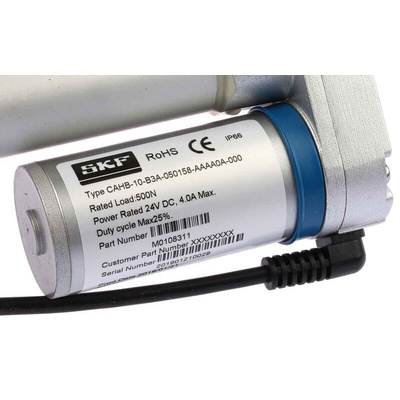

CAHB-10-B3A-050158AAA000-000, Ewellix Makers in Motion Micro Linear Actuator, 50mm, 24V dc, 500N, 16mm/s

Miniature Electric Linear Actuator, 24V DC, 500N Max Load - CAHB-10-B3A-050158AAA000-000

Automate the movement of objects or parts in your system with this linear actuator. It has a maximum stroke length of 50mm, making it ideally suited for hard-to-reach spaces and smaller setups. You can use it with loads weighing up to 50kg thanks to its maximum load-bearing capacity of 500N (Newtons). A zinc alloy gear housing and aluminium extension protect it from corrosion, allowing long-lasting use, even in damp environments. As the unit comes pre-lubricated, you can rely on it for reliable long-term performance. Use this actuator without a limit switch to suit your requirements.

• Self-locking when an action is complete to ensure user safety
• DC (direct current) motor converts electrical energy to mechanical action for fast actuation
• Maximum speed of 16mm/s (millimetres per second) for fast and efficient performance
• Can be installed horizontally or virtually depending on your system needs

Applications

• Computing equipment
• Factory machinery
• Medical equipment

What’s the operating temperature range of this linear actuator?

This actuator has a wide operating temperature range between -40°C and +85°C, making it suitable for use in harsh environments where cold and hot extremes occur.

SKF Easy 3, CARE 33, MATRIX, CASM and CAHB Actuators

Compact design
Overload protection
Various stroke lengths and movement of loads up to 50kg
Ideally suited to opening and closing doors, flaps and windows which are not within easy reach of users
Can be operated without limit switches

CAHB10B3A-050158AAA000000 Datasheet
