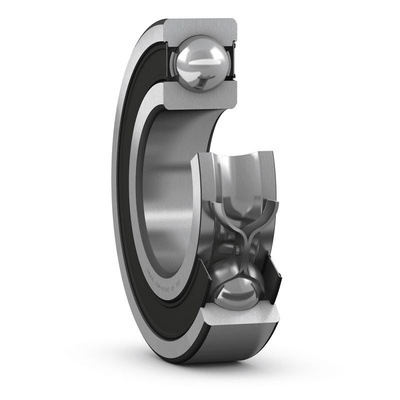

SKF 6314-2RS1 Single Row Deep Groove Ball Bearing- Both Sides Sealed 70mm I.D, 150mm O.D, Шарикоподшипник

SKF Deep-groove Ball Bearing, Plain Race Type, 70 mm ID - 6314-2RS1

Use this SKF ball bearing to support radial and axial loads in your structures and machinery. Thanks to its deep groove, it's capable of handling high torque with minimal friction, so it's a good choice for applications that require high rotational speeds. The bearing's ring, cage and balls are all made from a stainless-steel material that's both durable and corrosion-resistant, ensuring a long lifespan. It also comes pre-lubricated for maintenance-free use.

• Parallel bore type
• Dynamic load rating of 111 kN
• Static load rating of 68 kN
• Sealed end type
• Inside diameter of 70 mm
• Outside diameter of 150 mm
• Single row
• Plain race type
• Race width of 35 mm

Application Information

• Medical equipment
• Printing presses
• Food manufacture

What types of environments can the product be used in?

This bearing has a very broad operating temperature range of -40°C to +120°C. This makes it suitable for a wide range of demanding settings, both indoors and outdoors.

How is the product sealed?

The bearing has a nitrile butadiene rubber (NBR) seal on each end, preventing moisture or small particles from getting in. The seal also stops lubricant from leaking out.

Sealed bearing, 6314-2RS1, 70mm ID
