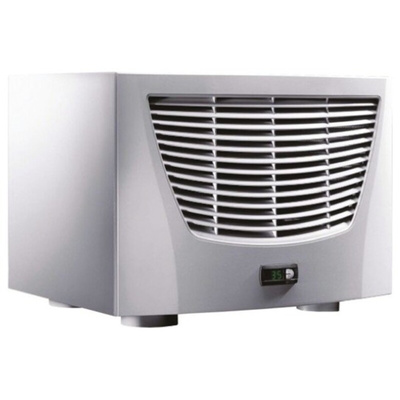

3384500, Rittal TopTherm Blue e Series Air Conditioning Unit, 1500W, 230V ac, 491m³/h, 417 x 597 x 475mm, Холодильный агрегат

Roof air conditioners TopTherm Blue e - Rittal

Doors and side panels as well as emergency exits remain free thanks to the roof mounting. Automatic condensate evaporation, RiNano coating on the condenser for easy cleaning and constant cooling capacity and efficiency.
These air conditioners also use an intelligent operating system, turning fans on and off as needed to maintain precise temperatures while saving energy.

Temperature range:

Operating temperature range (environment): +10 °C...+55 °C
Setpoint temperature setting range: +20 °C...+55 °C

Composition of the delivery:

• Nano-coated condenser
• Integral electric condensate evaporation
• Fully wired ready for connection (plug-in terminal strip)
• Drilling template
• Assembly parts

Standards

EN 14511, IEC 60 529

Approvals

UR/cUR – UL/cUL-FTTA – TÜV – CSA – EAC

Rittal Air Conditioning Unit, 1600m³/h External Circuit Air Flow, 230V AC Operating Voltage - TopTherm Blue e Series - 3384500

Remove heat and moisture from enclosed spaces with this air conditioning unit from Rittal. Its compact dimensions of 417 (H) x 597 (W) x 475mm (D) mean it's suitable for installation in crowded settings. As it has an operating voltage of 230V AC, the component is compatible with low-power setups. Its carbon steel material means it's resistant to impact and corrosion for durability in harsh environments.

• Condenser is nano-coated to prevent rust for long-lasting performance
• External circuit air flow of 1600m³/h and internal circuit air flow of 491m³/h for efficient cooling

Applications

• Medical laboratories
• Data centres

What's the operating temperature range of this air conditioning unit?

The device has a broad operating temperature range between +10°C and +55°C for use in harsh environments.

Top Therm Cooling Units Data Sheet

Datasheet - 3384500

Instruction Sheet - 3384500
