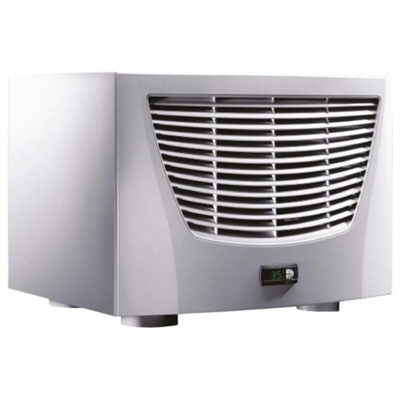

3383500, Rittal TopTherm Blue e Series Air Conditioning Unit, 1000W, 230V ac, 491m³/h, 417 x 597 x 475mm, Холодильный агрегат

Roof air conditioners TopTherm Blue e - Rittal

Doors and side panels as well as emergency exits remain free thanks to the roof mounting. Automatic condensate evaporation, RiNano coating on the condenser for easy cleaning and constant cooling capacity and efficiency.
These air conditioners also use an intelligent operating system, turning fans on and off as needed to maintain precise temperatures while saving energy.

Temperature range:

Operating temperature range (environment): +10 °C...+55 °C
Setpoint temperature setting range: +20 °C...+55 °C

Composition of the delivery:

• Nano-coated condenser
• Integral electric condensate evaporation
• Fully wired ready for connection (plug-in terminal strip)
• Drilling template
• Assembly parts

Standards

EN 14511, IEC 60 529

Approvals

UR/cUR – UL/cUL-FTTA – TÜV – CSA – EAC

Rittal Air Conditioning Unit, 230V AC Voltage Rating, Roof Mounting - TopTherm Blue e Series - 3383500

Use this air conditioning unit from Rittal to closely control the temperature of an enclosed space. Its housing is made of sheet steel for resistance to impact and corrosion, making it suitable for use in harsh environments. The unit's internal circuit has an IP54 rating, meaning it's protected against limited amounts of dust and water splashes. It's supplied pre-wired for ease of installation.

Features & Benefits

• Wide operating temperature range between +10°C and +55°C for use in demanding conditions
• External circuit air throughput rate of 1600m³/h for powerful cooling
• Supply voltage of 230V AC for use in low-power systems

Applications

• Manufacturing plants
• Medical laboratories
• HVAC systems

How large is this unit?

This unit has compact dimensions of 417 (height) x 597 (width) x 475mm (depth) for installation in crowded setups.
