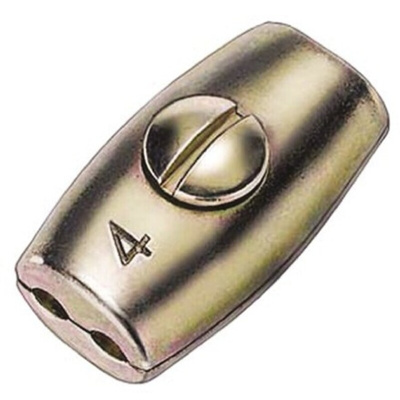

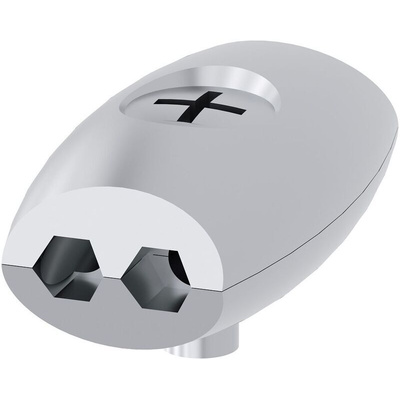

3SE7941-1AC, Siemens Rope Pull Cable Clamp

Siemens Rope Tensioner System Component, Rope Pull Cable Clamp Type, 4mm Size - 3SE7 Series - 3SE7941-1AC

Tighten up on health and safety with this rope tensioner system component from Siemens. It's a rope pull cable clamp that's designed for use with 3SE7 pull switches (such as 764-4360) to boost user protection in industrial areas. The switch stops a piece of machinery or production line immediately when the cord is pulled in response to a hazard. You can use this clamp to tension a cable, form a load-bearing eye on it or join two sections together. Common applications include protecting conveyor belts, woodworking machines and automated equipment.

Features & Benefits

• 4mm diameter for an accurate fit on compatible cables
• 3SE7 switches are functional in temperatures between -25°C and +70°C, for use in hot settings
• Light 37g weight doesn't add much load to your setup
• Can be used on wire lengths of up to 75m
• System has IP67 rating for protection against dust and high-pressure jets of water

How do I use this rope pull cable clamp?

Simply thread the cable through and then tighten the two nuts onto the tensioning bolts to achieve a tight grip.
