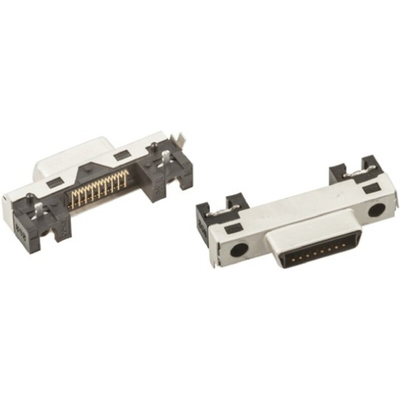

DH60-17P, Hirose DH Series Right Angle Surface Mount PCB Socket, 17-Contact, 2-Row, 1mm Pitch, Solder Termination

DH Series Receptacle Connector, Screw Lock Type

The DH Series . These Hirose DH Series receptacle connectors are an impedance controlled interface connector for high speed transmission, these interface connectors are for use with the screw-lock type covers and are compact in design with 1mm contact mating pitch and have excellent EMI shielding.

Current rating 0.5A
Voltage rating 125 Vac
Operating temperature range -25 to +85°C
1000 operating cycles

Hirose DH Series Shielded High Speed Interface

DH Series is an impedance controlled interface connector for high speed transmission. It has a 1mm contact mating pitch. This, coupled with a 0.5mm mounting pitch, makes for a more compact, lower-profile, higher-density alternative to conventional half-pitch interface connectors. Depending on the cable, the DH Series caters for speeds up to 2.5Gb/s. Applications include enterprise networking, industrial, telecom and datacom.

• 50% reduction in mating face area because of smaller pitch sizes
• Robust, D-shaped interface design resists wrenching forces
• Receptacle's through-hole style metal fittings facilitate retention to PCB
• Unique contact arrangement for IDC termination
• Excellent shielding for EMI prevention

DH Series Data Sheet
