2901533, Phoenix Contact RAD Series PLC I/O Module for Use with RAD-2400-IFS Wireless Module, Analogue, Digital, Analogue,, Модуль

RAD - Expansion / Extension Modules

Analogue / Digital extension modules with 4 inputs and/or 4 outputs
Mounting on standard DIN rail NS 35 in accordance with EN 60715
Range also includes a wireless transceiver version with RS-232 and RS-485 interfaces

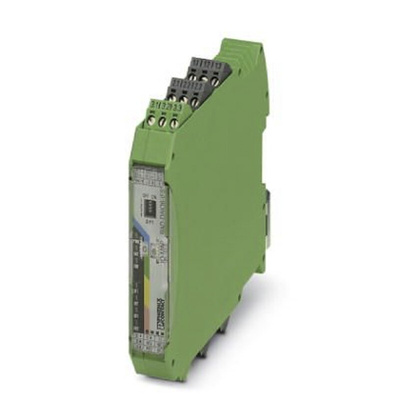

Phoenix Contact PLC I/O Module For Use With RAD-2400-IFS Wireless Module, 3 Inputs - RAD-DAIO6-IFS - 2901533

Use this I/O module from Phoenix Contact to transmit analogue and digital operating signals from a field device to a programmable logic controller. The module features one analogue input and two digital inputs for versatile operation and, for easy configuration, you can use the DIP switch to adjust the current input. An integrated protective circuit shields the analogue input from current overload and short circuits to prevent signal disruption.
The device features two relay outputs with contacts made from silver tin oxide, which is corrosion-resistant for use in damp or humid conditions. Thanks to a mechanical lifespan of 10 million cycles, you can rely on it for long service. Multiple LED indicators display the operating status of this I/O module, making it easy to monitor.

• Can be mounted in any position for flexible assembly
• ATEX certified for safe use in potentially explosive environments
• IP20 (ingress protection) rating for protection against objects over 12mm in size
• Durable PA 66 housing material is flame-retardant and impact-resistant for use in demanding conditions
• UL94 V-0 flammability rating indicates burning stops within 10 seconds for safety in the event of a fire

Analog/Digital I/O Extension Module
