2901541, Phoenix Contact Wireless Transceiver

RAD - Expansion / Extension Modules

Analogue / Digital extension modules with 4 inputs and/or 4 outputs
Mounting on standard DIN rail NS 35 in accordance with EN 60715
Range also includes a wireless transceiver version with RS-232 and RS-485 interfaces

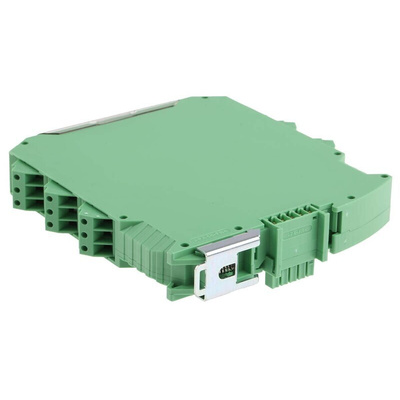

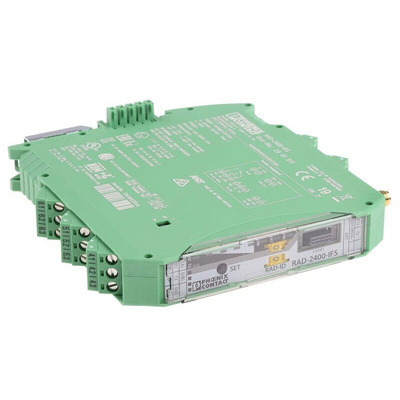

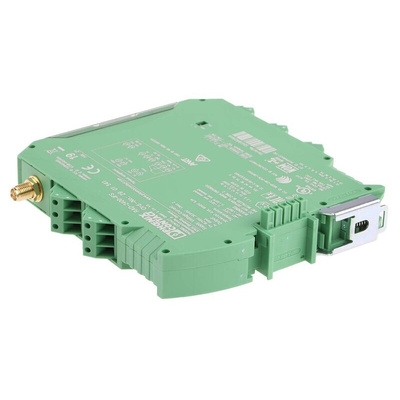

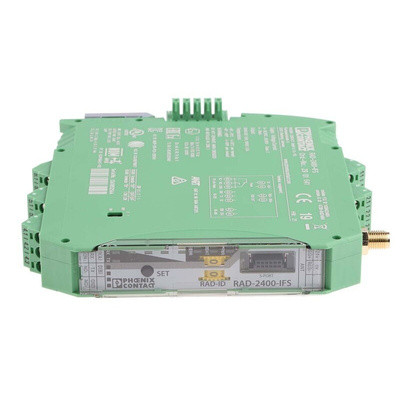

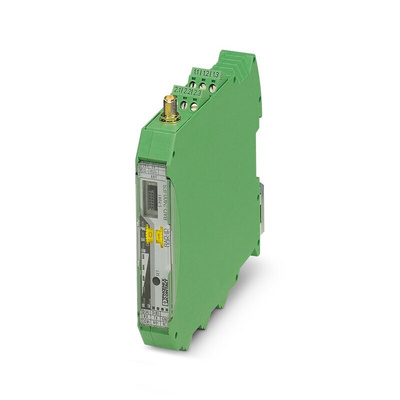

Phoenix Contact ATEX Certified Wireless Transceiver, 65mA Current, 2 Outputs - RAD-2400-IFS - 2901541

Looking for a device that lets you receive and transfer data in a communications system? Choose this wireless transceiver from Phoenix Contact. The unit comes with thumbwheels so you can adjust the input and output signal to suit your preferred setting. The signature green housing colour makes it easy to identify, and multiple LED signals let you monitor its status with ease.
A transmission capacity of ±5km means this transceiver is suitable for long-distance communication, while its frequency range between 2.4002GHz and 2.4785GHz makes it reliable for demanding applications like LANs (local area networks). To expand its capacity, you can integrate it into serial and input/output modules, which makes it a versatile choice. An integrated 128-bit encryption system also keeps your data secure. You'll find this device useful in a wide range of two-way communication equipment.

• Shock and vibration resistant to withstand harsh environments
• IP20 (ingress protection) rating prevents contact with live electrical parts
• Flammability rating of UL 94 V-0 means burning stops within 10 seconds for enhanced safety
• ATEX certified for use in hazardous environments
• Wide operating temperature range of -40°C to +70°C for use in extreme conditions

2400 MHz Wireless Transceiver RS-232

Brochure - Industrial Wireless

Manual - 2901541

Line Drawing - 2901541
