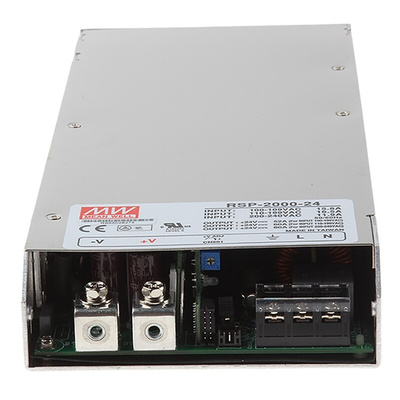

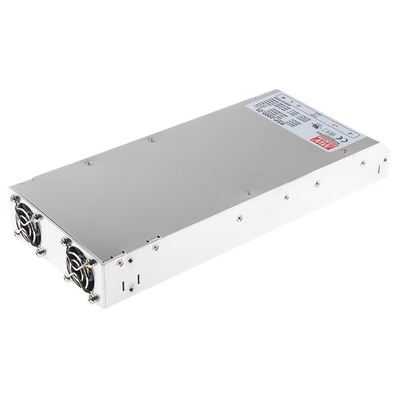

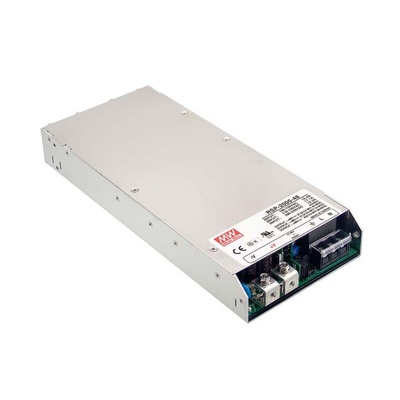

MEAN WELL Switching Power Supply, RSP-2000-24, 24V dc, 80A, 1.9kW, 1 Output, 127 → 370 V dc, 90 → 264 V, Источник питания

Mean Well Switch Mode Power Supply

The Mean Well RSP-2000 series 1920W single output AC to DC embedded switch mode power supply has an output current rating of 80A at 24VDC. It has a universal input supply voltage rating from 90VAC to 264VAC and 127VDC to 320VDC. The industrial power supply has a wide trimming function that enables the output voltage to be adjusted from 40% to 115% rated output voltage (60% - 115% for 12V) by adding 1VDC to 4.7VDC of the external control voltage. A built-in parallel function enables users to increase the output voltage to up to 7200W (current sharing up to 4 units). It has a constant current limiting along with a delay shutdown feature to provide overload protection in the AC-DC industrial power supply that enables the PSU to power capacitive/inductive loads whilst still providing full system protection.
Note:
MTBF to MIL-HDBK-217F (25°C)

Features and Benefits

high-efficiency of up to 92%
High power density of 21.4W/in3
Built-in active PFC and PF less than 0.97
Forced air cooling by built-in DC fan with fan speed control
Built-in 5V at 0.3A and12V at 0.8A auxiliary power
Output voltage can be trimmed between 40 to 115% of the rated output voltage
Built in parallel function of up to 4 units (Active current sharing up to 8000W)
Built-in remote ON-OFF control
Built-in remote sense function
DC OK signal
OTP alarm signal
Short circuit
Overload
Over voltage and over temperature protection
Fan alarm
Low profile 1U 41mm design
•

Applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
Digital broadcasting
RF application
LCD panel burn-in systems
IC testing equipment
Instrumentation
Telecommunication
Data storage.

Certifications

UL60950-1
TUV approved
EN60950-1
CB approved
EN55022 (CISPR22) conduction class B
Radiation class A
EN61000-3-2,-3 (harmonic current)
