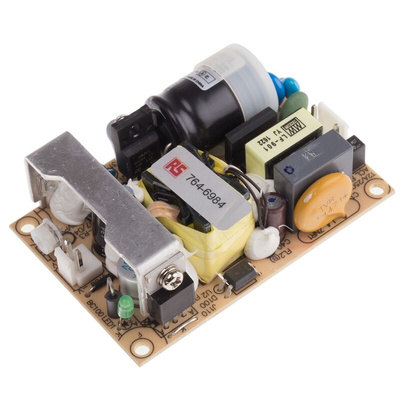

MEAN WELL Switching Power Supply, EPS-25-12, 12V dc, 2.1A, 25W, 1 Output, 120 → 370 V dc, 85 → 264 V ac, Источник питания

Mean Well EPS-25 Series 25W AC-DC Open Frame Miniature Switch Mode Power Supply

EPS-25 series 25W AC-DC open frame single output miniature switch mode power supply with a 24mm low profile, compact design and a PCB structure for installation directly into system chassis. These EPS-25 series 25W AC-DC open frame power supplies have a universal 85 to 264Vac input, a high efficiency of up to 90% allowing free air convection cooling from -30 to +70 and a low no load power consumption of less than 0.3W. Typical applications for these EPS-25 series AC-DC open frame switch mode power supplies include factory automation, electrical or mechanical equipment and other applications where a low no load power consumption is required.

Universal 85-264Vac input
Low no load power consumption of <0.3W
High efficiency of up to 90%
LED POWER-ON indication
Low profile of 24mm and compact 3" x 2" size
Free air convection cooling
Short circuit, overload and over voltage protection
EMC compliance to EN55022 (CISPR22) Class B
Harmonic current compliance to EN61000-3-2,-3

Note

A connector kit is available for these power supplies see stock number 764-7000
MIL-HDBK-217F (25°C)
Derate power above 50°C

Standards

UL60950-1, TUV EN60950-1 approved

Approvals

cULus, CB, TUV

EPS-25 Series 25W AC-DC Open Frame Miniature Switch Mode Power Supply
