MEAN WELL Switching Power Supply, EPS-65-7.5, 7.5V dc, 8A, 60W, 1 Output, 127 → 370 V dc, 90 → 264 V ac, Источник питания

Mean Well EPS-65 Series 65W AC-DC Open Frame Miniature Switch Mode Power Supply

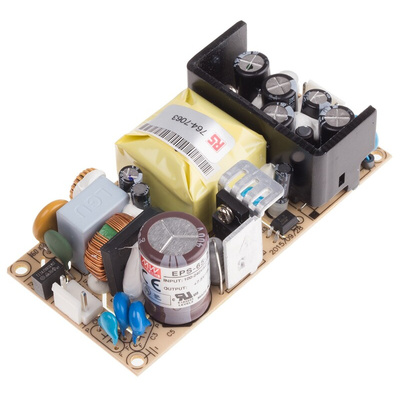

EPS-65 series 65W AC-DC open frame single output miniature switch mode power supply with a 24mm low profile, compact design and a PCB structure for installation directly into system chassis. These EPS-65 series 65W AC-DC open frame power supplies have a universal 90 to 264Vac input, a high efficiency of up to 90% allowing free air convection cooling from -30 to +70 and a low no load power consumption of less than 0.3W. Typical applications for these EPS-65 series AC-DC open frame switch mode power supplies include factory automation, electrical or mechanical equipment and other applications where a low no load power consumption is required.

Universal 90-264Vac input
Low no load power consumption of <0.3W
High efficiency of up to 90%
LED POWER-ON indication
Low profile of 28mm and compact 4" x 2" size
Free air convection cooling
Short circuit, overload and over voltage protection
EMC compliance to EN55022 (CISPR22) Class B
Harmonic current compliance to EN61000-3-2,-3

Note

A cover kit is available for these power supplies see stock number 764-7085
MTBF to MIL-HDBK-217F (25°C)
Derate power above 50°C (12-48V models), above 40° (3.3-7.5V models)

Standards

UL60950-1, TUV EN60950-1 approved

Approvals

cULus, CB, TUV

EPS-65 Series 65W AC-DC Open Frame Miniature Switch Mode Power Supply
