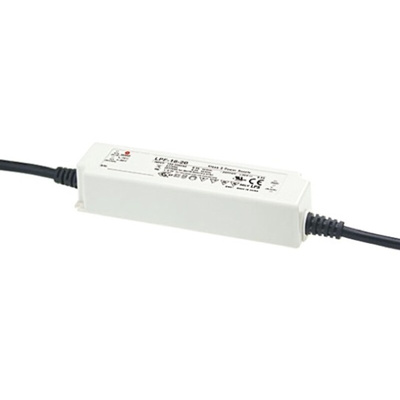

LPF-16-54RS, MEAN WELL LED Driver, 29.7 → 54V Output, 16.2W Output, 300mA Output, Constant Voltage, Драйвер светодиодов

RS LPF-16 Series 16W LED Driver Power Supply

LPF-16 series 16W LED driver power supply with a wide range universal AC input range of 90 to 305Vac and a built-in active PFC function. These LPF-16D series 16W LED driver power supplies have a class II AC input design (two wires without FG), a high efficiency of up to 86% and are able operate under a wide temperature range of -40 to +70° using free air convection. Typical applications for these 16W LED driver power supplies include LED lighting and moving sign applications.

Universal AC input range of 90 to 305 Vac
94V-0 rated fully isolated plastic case
Built-in active PFC function
High effciency of up to 86%
Class II AC input design (no FG)
Class 2 power unit
Free air convection cooling
Short circuit, over current, over voltage and over temperature protection
EMC compliance to EN55015
Harmonic current compliance to EN61000-3-2 Class C (≥50% load)

Note

MTBF to MIL-HDBK-217F (25°C)
Derate power above 50°C

Standards

UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V),EN61347-1, EN61347-2-13 independent approved, Design refer to UL60950-1, TUV EN60950-1

Approvals

cULus, UL, CB
