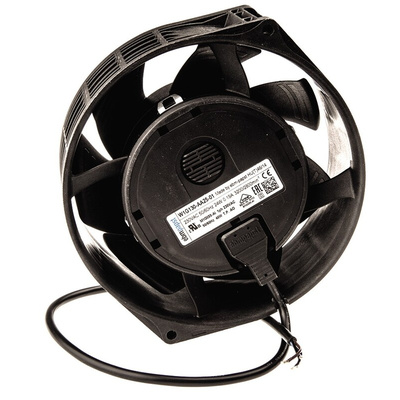

W1G130-AA25-01, ebm-papst W1G130 Series Axial Fan, 230 V ac, AC Operation, 370m³/h, 25W, IP54, 150 x 57mm, Вентилятор

ebm-papst GreenTech EC Energy Efficient Fans – W1G130 Series

The W1G130 series utilises motors with GreenTech EC technology offering enhanced performance with a fraction of the energy usage of conventional motors. They require up to 60% less input capacity than its AC predecessors. They have 2 speed stages which can be switched according to demand further reducing their energy requirements and increasing cost savings. Sealed to IP54 they can be used in industrial applications and are mechanically fully compatible with their AC predecessors making conversion to this technology quicker and easier.

GreenTech EC Technology

GreenTech EC refers to the motor used in multiple series’ of fans from the ebm-papst range. These motors have been specifically developed to offer maximum energy-efficiency and enable the equipment to be as economically as possible. This gives a reduction in operating costs while still giving improved performance over conventional motors. They also set a new standard in reliability and service life further reducing any operating and maintenance costs.

Features

• Energy efficient AC fan with EC technology
• Conversion and drive electronics fully integrated
• Long service life
• Speed selection max. /min
• Soft start
• Thermal overload protection for motor
• Ingress Protection: IP54
• Operating temperature range: -40 to +80 °C

W1G130-AA25-01 EC Axial Fan ESM Datasheet

W1G130-AA25-01 Operating Instructions
