RS PRO Carbon Fibre Sheet, 300mm x 300mm x 1mm, Лист из углеродного волокна

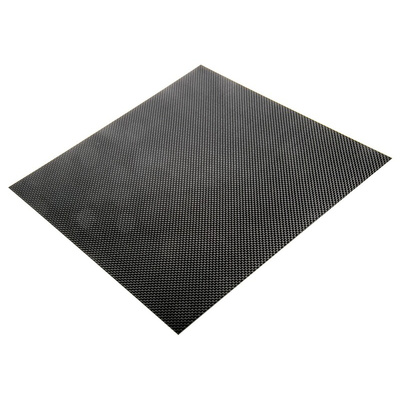

RS PRO Carbon Fibre Sheet, 300 mm x 300 mm x 1 mm

These rigid carbon fibre sheets from the RS PRO range can withstand heavy loads and sudden impacts without bending or buckling. This makes them a favoured alternative to heavy metallic parts in settings where strong but lightweight components are required, such as in the automotive, railway and aerospace industries.

Made by combining polymer fibres, like polyacrylonitrile, with an epoxy resin matrix system, the carbon fibre sheets have two different sides. One resin-rich side is sleek and the reverse has a twill-fabric weave detail. The sheets have a maximum operating temperature of +80°C, a density of only 1.6 g/cm³ and a thickness of just 1 mm.

Carbon fibre is not only suited to industrial use. Its excellent performance has lent itself to use in consumer goods such as phone cases, state-of-the-art speaker cabinets and motorcycle conversion kits.

Features and Benefits

• RS PRO carbon fibre sheets
• Made from carbon fibre epoxy
• Black in colour with smooth glossy finish on one side and visible twill weave pattern on the other
• Length of 300 mm
• Width of 300 mm
• Thickness of 1 mm
• Compression strength of 570 MPa
• Density of 1.6 g/cm³
• Maximum operating temperature of +80°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
