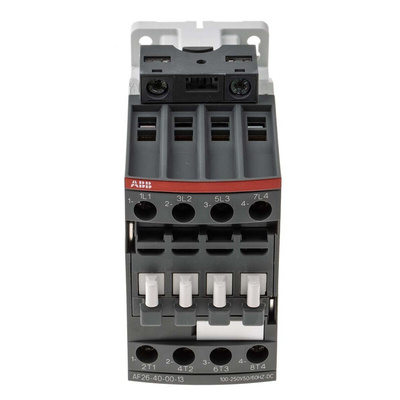

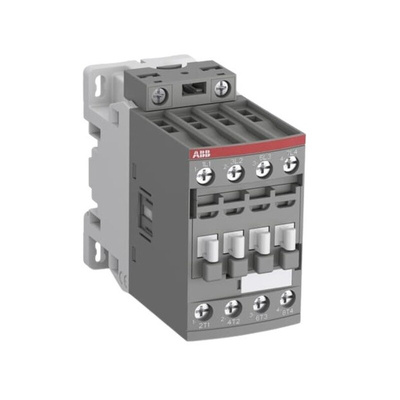

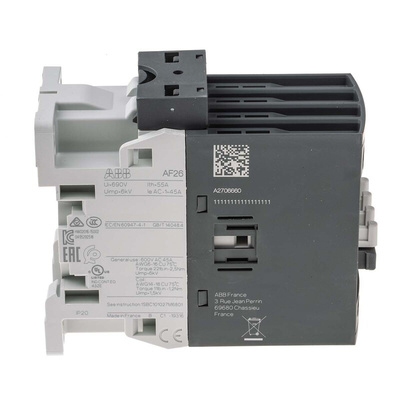

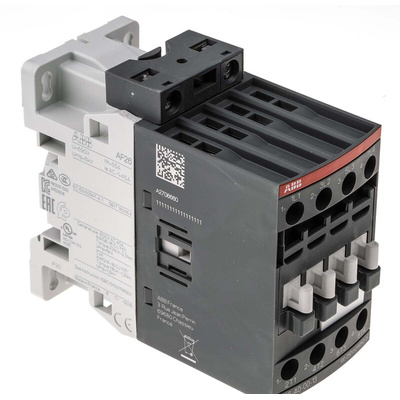

1SBL237201R1300 AF26-40-00-13, ABB AF Series Contactor, 230 V ac Coil, 4-Pole, 45 A, 11 kW, 4NO, 690 V ac, Контактор

ABB Contactor, 690V AC Contact Voltage Rating, 1.6W Pole Power Loss - AF Series - 1SBL237201R1300 AF26-40-00-13

Safely activate your equipment with this contactor from ABB. It provides up to 11kW of switching power, so it can handle large electrical loads to start heavy-duty appliances. As the unit responds to signals between 11 and 95ms, it quickly switches attached equipment and supports efficient working. Its four poles support three-phase voltages for compatibility with common industrial power supplies. Built-in surge protection means the contactor minimises the risk of short circuits damaging your machines, keeping your system safe from electrical faults.

Features & Benefits

• Wide control voltage range of between 100 and 250V AC/DC for versatility
• Completes up to 600 electrical cycles an hour for applications with intense switching demands
• Low heat loss of 1.6W per pole for energy-efficient motor control
• Broad operating temperature range between -40°C and +70°C for use in harsh industrial environments

Applications

• Metalworking
• Lighting systems
• Electric vehicles
• Manufacturing industry

Is this contactor touch-proof?

This contactor has an IP20 ingress protection rating to show it's protected against solid objects larger than 12mm, including fingers. This means it's safe to handle.

AF 4 Pole Contactor

Application Note - Contactor-Based Automatic Transfer Switch Solutions

Datasheet - 1SBL237201R1300 AF26-40-00-13

Catalogue - Electrification Products
