1SBL177001R1110 AF16-30-10-11, ABB AF Series Contactor, 24 V ac/dc Coil, 3-Pole, 30 A, 7.5 kW, 3NO, 690 V ac, Контактор

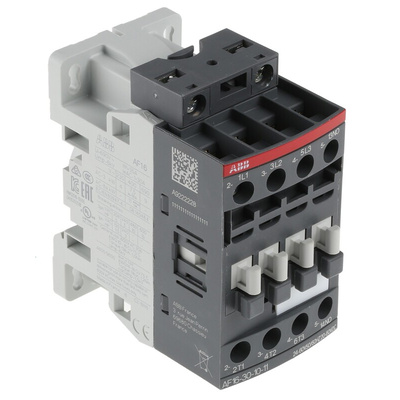

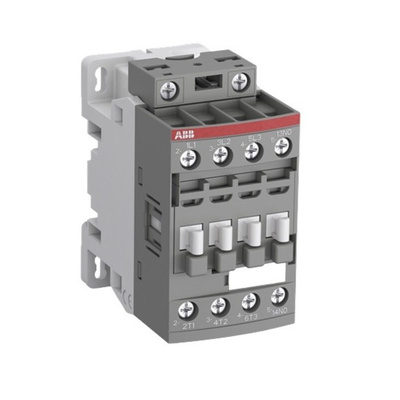

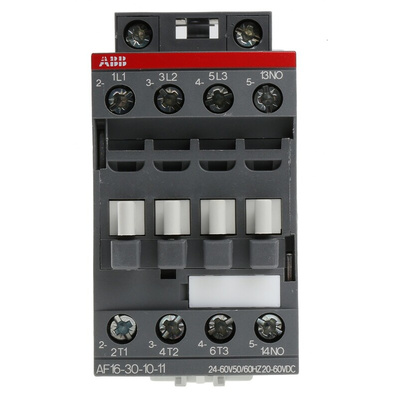

ABB Contactor, 7.5kW Power Rating, 30A Contact Current Rating - AF Series - 1SBL177001R1110 AF16-30-10-11

Use this contactor from ABB to quickly switch high voltages. Its 24V coil manages voltages up to 690V AC, providing a safe way to operate large machinery. The device works with both AC and DC voltages, so you can use it with the most common power supplies. It has 3 conductive poles, so switches up to 3 circuits at once for efficient equipment control. As the unit can safely achieve up to 3600 switching cycles per hour, it's suitable for controlling appliances that perform repetitive tasks.

Features & Benefits

• Response times between 11 and 98ms for efficient process control
• Integrated surge protection minimises the disruption to your system from electrical faults
• Supplied with a NO auxiliary contact for use with a logic controller, providing automated switching
• Long mechanical lifespan of 10 million cycles for a low-maintenance switching device

Applications

• Electric vehicles
• Security systems
• Refrigeration and freezing equipment
• Logistics industry

How do I mount this contactor?

You can mount this contactor on a DIN rail for easy installation. To protect the device against vibrations, you can use M3.5 threaded screws to secure your electrical connections.

AF 3 Pole Contactors

ABB Auxiliary Contacts Cross Reference List AF16 Range

Catalogue - Electrification Products

Instruction Sheet - Contactors AF, Contactor Relays NF and Accessories
