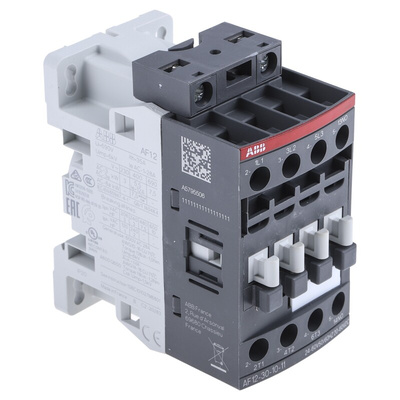

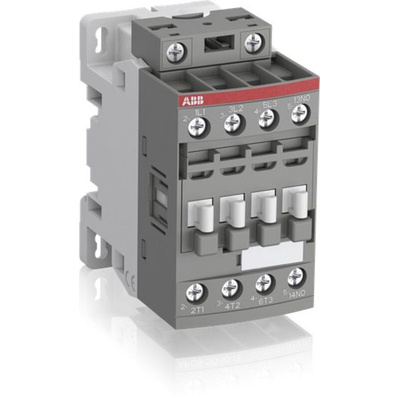

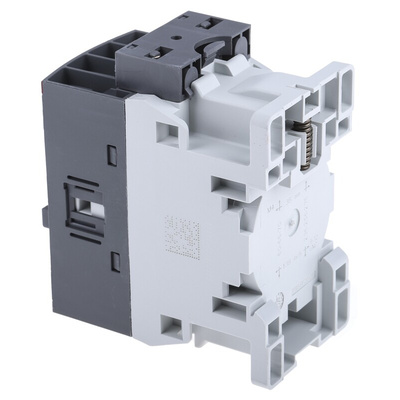

1SBL157001R1110 AF12-30-10-11, ABB AF Series Contactor, 24 V ac/dc Coil, 3-Pole, 28 A, 5.5 kW, 3NO, 690 V ac, Контактор

ABB Contactor, DIN Rail Mounting, 6kV Rated Impulse Withstand Voltage - AF Series - 1SBL157001R1110 AF12-30-10-11

Switch your automated machinery in a flash with this ABB contactor. It opens and closes circuits with an operating current of up to 28A, so it easily tackles common electrical loads. Thanks to its speedy reaction times between 11 and 98ms, the device snaps promptly into action. Handy screw terminals make it a breeze to wire without the need for complex tools. The contactor's built-in auxiliary contact boosts its functionality and makes it a cinch to send signals to a control device.

Features & Benefits

• Electrical switching frequency of up to 1200 operations per hour to keep up with heavy switching demands
• Compact dimensions of just 77 (L) x 45 (W) x 86mm (H) to maximise space in your system
• Clips onto a DIN rail for quick and simple installation
• Built-in surge protection to reduce the risk of damage caused by electrical faults

Applications

• Lighting systems
• Manufacturing facilities
• Industrial automation

How do I identify this contactor's auxiliary contact?

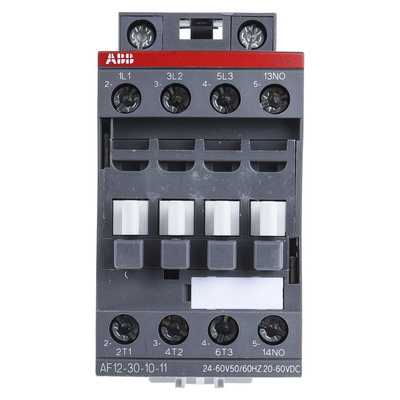

This product's front plate comes with labels to identify each of its terminals, making it easy to tell its auxiliary contact apart from its main poles at a glance.

AF 3 Pole Contactors

ABB Auxiliary Contacts Cross Reference List AF12 Range

Datasheet - 1SBL157001R1110 AF12-30-10-11
