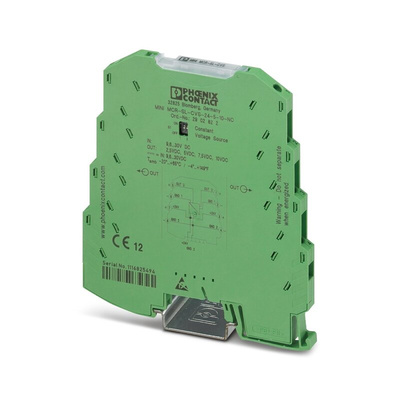

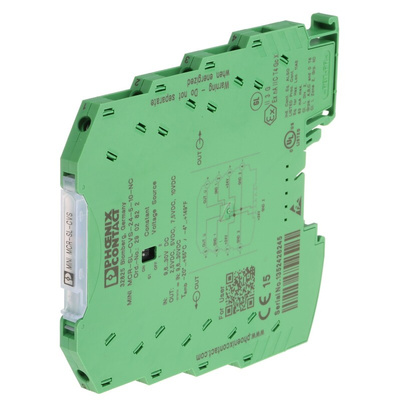

2902822, Phoenix Contact 3RS7025 Series Signal Conditioner, Voltage Input, Voltage Output, 9.6 → 30V dc Supply

Phoenix Contact Signal Conditioner, Configurable, 9.6 to 30V DC Input Voltage - MINI MCR-SL-CVS-24-5-10-NC - 2902822

This signal conditioner from Phoenix Contact converts electric signals from an input source to precise and constant voltages in an output system. You can use it to regulate input voltages between 9.6 and 30V DC, making it a versatile choice. While the unit comes pre-configured for ease of use, you also can adjust the voltage output to fit your setup.
For added versatility, the DIP switches at the side of its housing lets you set it between multiple output voltages from 2.5 to 10V DC. A broad operating temperature range between -20°C to +65°C means this conditioner can withstand demanding settings. You can use it with instrumentation devices like pressure and temperature sensors.

Features & Benefits

• PBT housing offers insulation to prevent electric shocks
• IP20 ingress protection rating means it's touch-proof and resistant to dust or objects over 12mm in size
• Complies with EN 61000-6-4 standards for reduced noise emission
• ATEX certified for safe use in hazardous and potentially explosive environments
• Maximum transmission error of ≤0.1% of final value for reliable signal transmissions
