FMR3G / 1727040094, FCT from Molex FMR Series Die Cast Zinc D Sub Backshell, 25 Way, Strain Relief

FMR Series Metal Hood Twin Cable Entry

These FMR Series Metal Hood Backshells have a Large Inner Chamber and an Angled or Straight Twin Cable Outlet. This large amount of internal space is particularly suitable for D-sub connectors with special contacts. The design of the FMR Series Metal Hood Backshell includes twin strain relief on the cable outlet. The FMR Series Metal Hood Backshell is easy to assemble thanks to the catch spring system and pre-mounted locking screws. The FMR Series Metal Hood Backshells can be used with engagement hooks and locking or knurled screws.

FMRxG-xxxx: Angled 45°
FMRx-4488: Twin Cable Entry

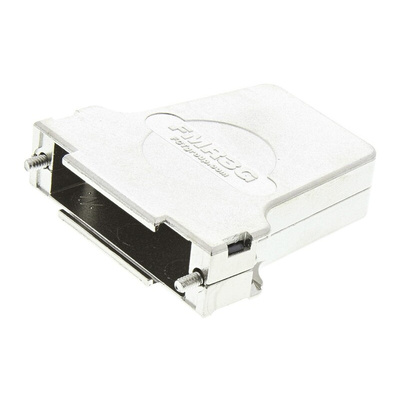

FCT from Molex D-Sub Backshell, 25 Contacts, Die-Cast Zinc Housing - FMR Series - FMR3G / 1727040094

Use this D-sub backshell by FCT from Molex to house your non-standard connectors. As it has 25 contacts, it's useful for serial and parallel data communications. The B-sized shell has a twin cable outlet and extra room inside to accommodate special contacts. It includes clamps and a strain relief to protect one or two cables, as well as a spring catch for easy installation.

• Low-halogen housing to improve fire safety
• Wide operating temperature range of -35°C to +100°C for use in demanding environments
• Nickel-plated die-cast zinc body for durability and resistance to corrosion

Applications

• Computing systems
• Industrial networks
• Aviation industry
• Medical devices

Is this D-sub backshell simple to mount?

The backshell's screws come mounted in pre-drilled holes for quick assembly. This makes it easier to install while you're out in the field, reducing downtime.

FMR Series Metal Hood Twin Cable Entry Catalogue Page

FMR Series Metal Hood Twin Cable Entry Customer Drawing

Datasheet - FMR3G / 1727040094
