ams OSRAM2.15 V Red LED PLCC 4 SMD, Power TOPLED LR E6SF-ABCA-1-1, Светодиод

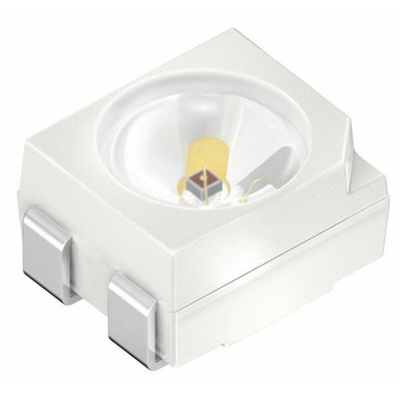

OSRAM Power TOPLED Series of LEDs

The Power TOPLED series of SMT LEDs, from Osram Opto Semiconductors, have an enhanced internal heat distribution which gives the devices a higher current. As a powerful member of the TOPLED family, the Power TOPLED LED can handle a maximum forward current of up to 70 mA and an ambient temperature of up to 100°C. Ideal applications for the Power TOPLED series include: display backlighting, indoor displays, signal and symbol illumination, automotive lighting, marker lights or light guide coupling.

Power TOPLED package: PLCC-4 (3.4 x 3.0 x 2.1 mm)
Viewing angle 120°

Note

Amber LEDs – Originally designed for use in automotive brake-light applications, OSRAM amber LEDs can appear red due to a high dominant wavelength value. Refer to a dominant wavelength colour chart to find your chosen LED colour.

LS E6SF, LR E6SF, LA E6SF, LO E6SF, LY E6SF Power TOPLED Datasheet

LED Designation System
