NXP Freedom KL25Z MCU Development Kit FRDM-KL25Z

Kinetis L Cortex-M0+ Freedom Board

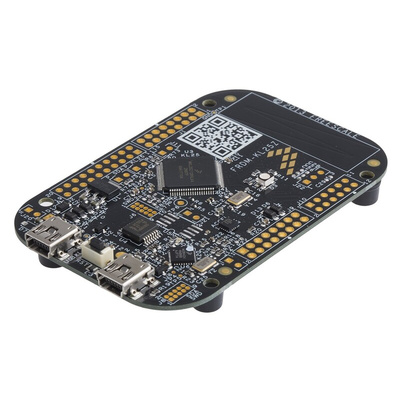

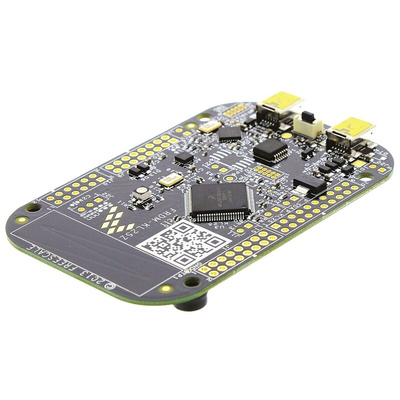

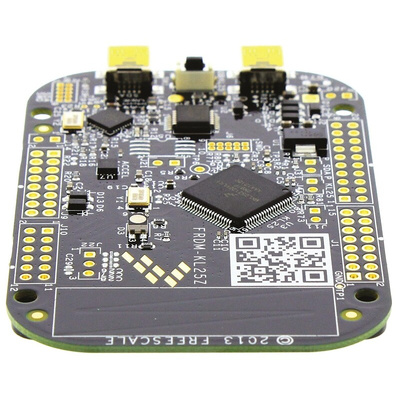

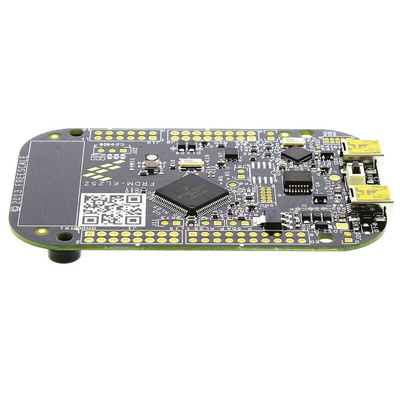

The NXP Freedom-KL25Z is a development board based on the Kinetus L Series (KL1x/KL2x) microcontrollers. It is designed for rapid microcontroller development and offers the ability to add expansion boards.

What are Kinetis L Series MCUs?
The Kinetis L series of microcontrollers are based on the Arm Cortex-M0+ processor core. They are ultra-low power MCUs which feature USB 2.0 OTG (On-The-Go) and are ideal for applications requiring connectivity.
This particular board houses the MKL25Z128VLK4 MCU. It has a processor speed of 48MHz with 128KB of flash memory and 16KB SRAM memory.

Which Operating Systems does the FRDM-KL25Z use?
The FRDM-KL25Z can be used with the Kinetis Software Development Kit (SDK). It is also compatible with Arm Mbed OS and Zephyr OS.

What’s on board?
MCU: MKL25Z128VLK4
MCU frequency: 48MHz
Memory: 128KB Flash, 16KB RAM
USB Connectors: 1 for KL25, 1 for OpenSDA software
Capacitive Touch: Touch Pad Slider
Accelerometer: MMA8451Q
Oscillator: 1 x 8MHz
LEDs: 1 x RGB LED
I/O Connectors: Arduino compatible I/O headers (J1, J2, J9 & J10)
Switch: 1 x Reset Switch

Note

USB-A to Micro USB-B cable required (not included) - RS Part 790-3656

Supplied with

Quick Reference card

Note

NXP is a trademark of NXP B.V.

The Kinetis range of ARM Cortex core microcontrollers consists of multiple hardware- and software-compatible Cortex-M0+ and Cortex-M4 MCU families with exceptional low-power performance, memory scalability and feature integration. Families range from the entry-level Cortex-M0+ Kinetis L Series to the high-performance, feature-rich Cortex-M4 Kinetis K and include a wide selection of analogue, communication, HMI, connectivity and security features.
