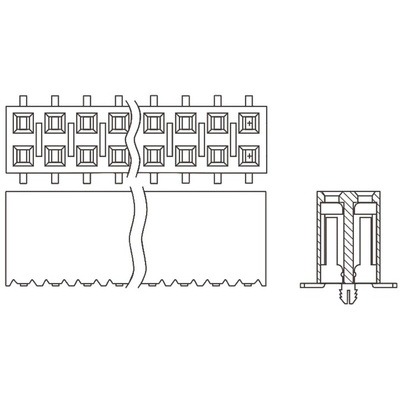

SSM-115-L-DV, Samtec SSM Series Straight Surface Mount PCB Socket, 30-Contact, 2-Row, 2.54mm Pitch, Solder Termination

SMT 2.54mm Square Box Socket Strip - SSM Series

SSM series board to board PCB surface mount box style socket strips with a 2.54mm pitch available in single or double row configurations and vertical or horizontal body orientation. The body of these SSM series board-to-board SMT box socket strips is made from black liquid crystal polymer and the contacts are made from phosphor bronze with a 0.25μm gold plating on the contact and matte tin on the tail. The temperature range at which these PCB board to board socket strips can be used is -55 to +125°C.
Part numbers SSM-XXX-X SH are single row, horizontal mount.
Part numbers SSM-XXX-X SV are single row, vertical mount.
Part numbers SSM-XXX-X DH are double row, horizontal mount.
Part numbers SSM-XXX-X DV are double row, vertical mount.

Note

These SSM series board to board SMT box style socket strips will mate with the following:
TSW series through hole square post headers - stock number 767-0849 typically.
TSM series SMT square post headers - stock number 765-6458 typically.
TLW series low profile square headers - stock number 765-6127 typically.

Samtec SSM Straight Surface Mount PCB Socket, 30-Contact, 2.54mm Pitch - SSM-115-L-DV

This is a range of surface mount socket strips designed for classic .100" pitch applications. Samtec takes the humble socket strip to new performance levels with their Extended Life Product™ testing. These socket strips offer exceptional durability and space-saving benefits, making them ideal for high-performance applications.

Features & Benefits

• Surface mount capability ensures easy integration into PCB layouts
• Rigorous testing ensures long-lasting reliability
• Dual-row configuration accommodates various design requirements and flexibility

Applications

• Ideal for applications demanding reliable signal transmission
• Suitable for surface mount designs in various electronic devices
• Used in automation, robotics, and control panels

Can the SSM-115-L-DV withstand harsh environmental conditions?

Yes, the SSM-115-L-DV undergoes rigorous testing, making it suitable for demanding environments.

What is the maximum current rating for this connector?

The SSM-115-L-DV can handle currents up to its specified rating, ensuring safe operation.
