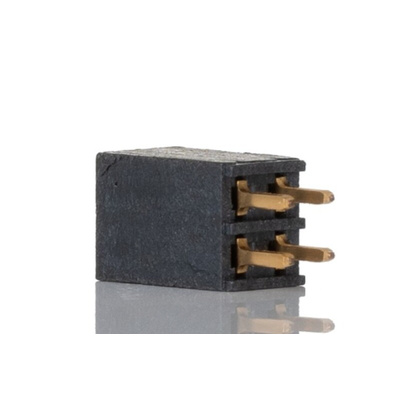

SSQ-102-01-G-D, Samtec SSQ Series Straight Through Hole Mount PCB Socket, 4-Contact, 2-Row, 2.54mm Pitch, Solder Termination

Through Hole 2.54mm Square Post Socket Strips with Square Tail - SSQ Series

SSQ series PCB through hole board-to-board square post, square tailed socket strips with a 2.54mm pitch, a black, liquid crystal polymer insulator and phosphor bronze Tiger Buy contacts with 0.51μm gold plating on the contact and gold flash on the tail. These PCB board to board 2.54mm through hole square post socket strips are available in a variety of configurations including single and double row, straight or right angle body orientation and an option of post lengths. The operating temperature range for these SSQ series PCB through hole sockets is -55 to 125°C.
SSQ PCB sockets with part number TSW-xxx-01-x-x have a tail length of 2.64mm.
SSQ PCB sockets with part number TSW-xxx-02-x-x have a tail length of 4.93mm.

Note

These SSQ series PCB through hole board-to-board square post sockets mate with the following:
TSW series through hole 2.54mm square post headers - see stock number 767-0849 typically.
TSM series SMT 2.54mm square post headers - see stock number 765-6458 typically.

Samtec PCB Socket, Phosphor Bronze Contact Material, 0.92N Insertion Force - SSQ Series - SSQ-102-01-G-D

Keen to cut down on complications when you're connecting your circuit boards? Try this PCB socket from Samtec. It allows you to quickly hook up boards without the need for cables, so it reduces your wiring time. The Tiger Buy contacts use a turning fork that ensures there's little chance of your connections accidentally working loose. As the contacts are made of phosphor bronze, they're highly conductive to ensure your signals flow efficiently through your system.

Features & Benefits

• Safe for use in harsh industrial environments, thanks to its broad operating temperature range between -55°C and +125°C
• Black liquid crystal polymer insulation offers protection against electric shocks
• Low insertion force of 0.92N for ease of assembly
• Gold plating on contacts for resistance to corrosion

Applications

• Industrial automation
• Testing and research facilities
• Military equipment
• Telecommunication centres

Is this PCB socket reusable?

Yes, the product is reusable as you can insert and disconnect it up to 100 times. This makes it an ideal choice for setups that need frequent reconfiguration.
