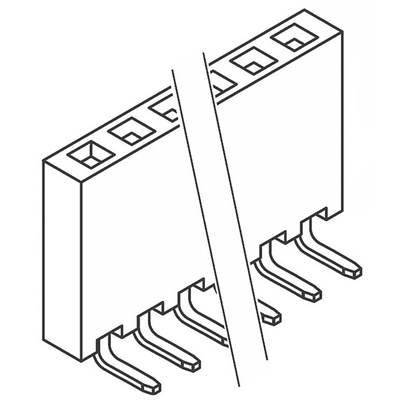

SSQ-106-02-G-S-RA, Samtec SSQ Series Right Angle Through Hole Mount PCB Socket, 6-Contact, 1-Row, 2.54mm Pitch, Solder Termination

Through Hole 2.54mm Square Post Socket Strips with Square Tail - SSQ Series

SSQ series PCB through hole board-to-board square post, square tailed socket strips with a 2.54mm pitch, a black, liquid crystal polymer insulator and phosphor bronze Tiger Buy contacts with 0.51μm gold plating on the contact and gold flash on the tail. These PCB board to board 2.54mm through hole square post socket strips are available in a variety of configurations including single and double row, straight or right angle body orientation and an option of post lengths. The operating temperature range for these SSQ series PCB through hole sockets is -55 to 125°C.
SSQ PCB sockets with part number TSW-xxx-01-x-x have a tail length of 2.64mm.
SSQ PCB sockets with part number TSW-xxx-02-x-x have a tail length of 4.93mm.

Note

These SSQ series PCB through hole board-to-board square post sockets mate with the following:
TSW series through hole 2.54mm square post headers - see stock number 767-0849 typically.
TSM series SMT 2.54mm square post headers - see stock number 765-6458 typically.

Samtec PCB Socket, Gold-Plated Contacts, 465V AC/655V DC Voltage Rating - SSQ Series - SSQ-106-02-G-S-RA

Slotting your circuit boards together is a cinch with this PCB socket from Samtec. Its right-angled shape means it copes well with assembly in narrow or low-profile areas. Thanks to the unit's phosphor bronze contacts, it keeps electricity flowing freely for reliable signalling connections. A regulation 2.54mm pitch makes it easy to slip into existing hardware. As the connector uses gold plating on the contacts, it's corrosion-resistant, cutting the risk of damage in damp environments.

Features & Benefits

• Six-way body connects many circuits at once for efficient wiring
• Dual-beam pins mate with just 1.67N insertion force, minimising contact wear
• Tackles current up to 6.3A per pin to carry demanding everyday loads
• Lifespan of 100 connection cycles for long-term mating

Applications

• Automotive industry
• Electronics manufacturing
• Material handling
• LED lighting systems

How do I mount this socket to my board?

This component fits to a PCB using through-hole mounting. Simply slot it into the pre-drilled holes and solder to ensure a secure installation.

What tools do I need to connect this socket?

As this product plugs directly into a header (180-3436), it's a breeze to connect without tools.
