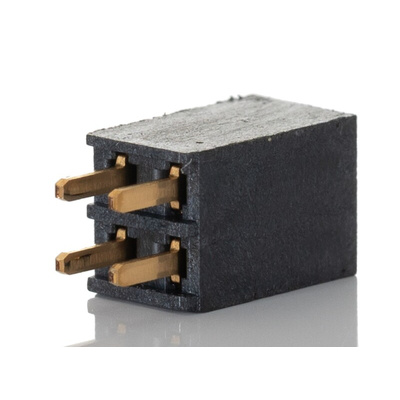

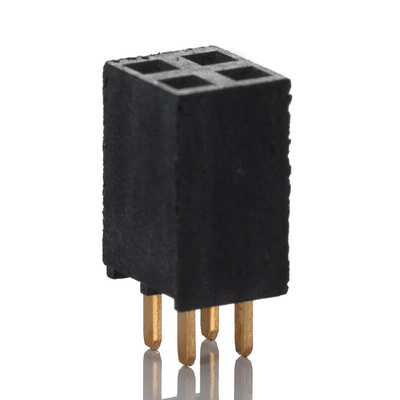

SSW-102-01-G-D, Samtec SSW Series Straight Through Hole Mount PCB Socket, 4-Contact, 2-Row, 2.54mm Pitch, Solder Termination

Samtec PCB Socket, Tiger Buy Contacts, 5.7A Current Rating Per Pin - SSW Series - SSW-102-01-G-D

Put your circuit boards in communication with each other using this PCB socket from Samtec. It lets you easily stack and send signals and power between circuits, which helps to keep your automated industrial network operating efficiently. Simply solder the unit onto your PCB via its four connection points. This saves on board packing space and also cuts down on termination time. As the product features Tiger Buy contacts with a low insertion force of 0.83N, you can get through your board wiring tasks without breaking a sweat.

Features & Benefits

• Liquid crystal polymer body provides insulation for protection against electric shock
• Chemical and wear-resistant phosphor bronze contacts make it compatible with harsh industrial locations
• Extended insertion depth between 3.68 and 6.35mm for durable board stacking
• Low withdrawal force of 0.72N for quick disconnecting

Applications

• Avionics
• Medical and healthcare facilities
• Automotive manufacturing
• IT hubs

Does this PCB socket have plated pins?

Yes, this socket strip has highly conductive gold-plated pins that ensure optimal electrical flow. As this metal is also corrosion-resistant, the component takes humid settings in its stride.
