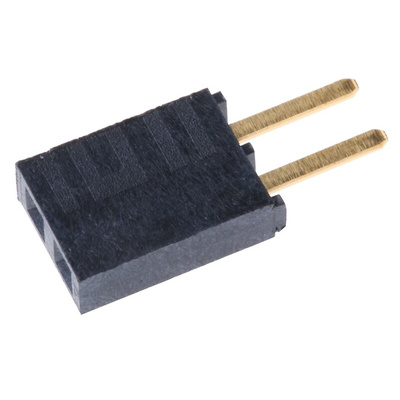

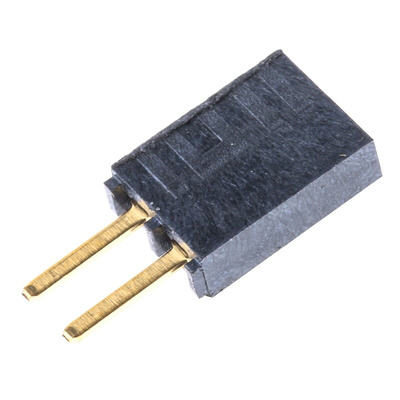

SSW-102-02-G-S, Samtec SSW Series Straight Through Hole Mount PCB Socket, 2-Contact, 1-Row, 2.54mm Pitch, Solder Termination

Through Hole 2.54mm Square Post Socket Strips with Solder Tail - SSW Series

SSW series PCB through hole board-to-board square post, solder tailed socket strips with a 2.54mm pitch and a black, liquid crystal polymer insulator. The Tiger Buy contacts of these 2.54mm PCB through hole sockets are made from phosphor bronze with 0.51μm gold plating on the contact and gold flash on the tail (apart from stock numbers 765-5739 and 765-5786 which have matte tin contacts). These PCB board to board 2.54mm through hole square post socket strips are available in a variety of configurations including single and double row, straight and right angle and an option of post lengths. The operating temperature range for these SSW series PCB through hole sockets is -55 to 125°C for gold plated versions and -55 to 105°C for matte tin versions.
SSW PCB sockets with part number TSW-xxx-01-x-x have a tail length of 2.64mm.
SSW PCB sockets with part number TSW-xxx-02-x-x have a tail length of 4.93mm.

Note

These SSW series PCB through hole board-to-board square post sockets mate with the following:
TSW series through hole 2.54mm square post headers - see stock number 767-0849 typically.
TSM series SMT 2.54mm square post headers - see stock number 765-6458 typically.

Samtec PCB Socket, 6.9A Current Rating Per Pin, Phosphor Bronze Contact Material - SSW Series - SSW-102-02-G-S

For reliable board-to-board mounting in your panel, opt for this PCB socket from Samtec. It accepts the male connectors of a plug on a board for effective signal and power transfer. As this single-row unit features two contacts, you can set up multiple connections to your board. Its highly conductive phosphor bronze contacts deliver stable current transmissions. A compact pitch size of 2.54mm makes this product a shoo-in for setups with limited space.

Features & Benefits

• Durable gold contact plating for resistance to corrosion
• Straight body orientation for convenient front-facing installation
• Withstands 100 mating cycles for long-lasting performance
• Safe for use in harsh settings, thanks to a wide operating temperature range of -55°C to +125°C
• Current rating of 6.9A per pin for use in medium-power systems

Applications

• Consumer electronics
• Aerospace engineering
• Telecommunications
• Medical technology

How do I mount this socket?

For a reliable link, you can mount this socket by soldering the pins to through-holes on your board.

What's this socket made from?

The housing of this socket is made from liquid crystal polymer that offers effective insulation to prevent electrical hazards.
