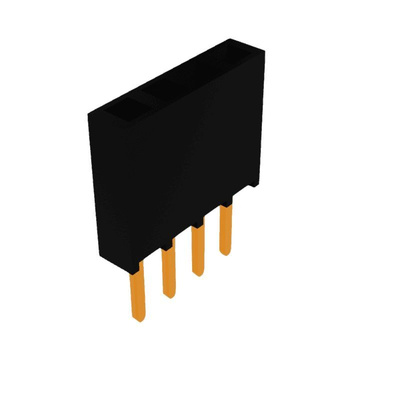

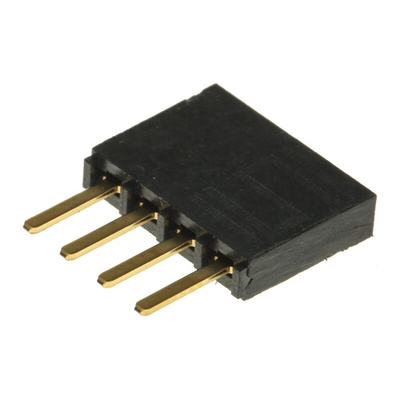

SSW-104-02-G-S, Samtec SSW Series Straight Through Hole Mount PCB Socket, 4-Contact, 1-Row, 2.54mm Pitch, Solder Termination

Samtec PCB Socket, Liquid Crystal Polymer Insulator, Phosphor Bronze Contacts - SSW Series - SSW-104-02-G-S

Bridge the gap between wires and your circuit board with this PCB socket from Samtec. Its 4-contact design gives you multi-component system control and reduces your wiring needs, making for a neat setup. The device's highly conductive phosphor bronze pins give you a reliable connection. A liquid crystal polymer housing protects you from electric shocks, ensuring safe operation. Through-hole mounting secures the socket to your board, so it stays put even in vibrating applications.

Features & Benefits

• Withstands up to 100 operating cycles, so it's built to last a long time and requires minimal maintenance
• Pitch of 2.54mm provides safe spacing between contacts to prevent short circuits
• Low insertion force of 0.83N makes it easy to install
• Reliable performance in challenging settings, thanks to an operating temperature range between -55°C and +125°C
• 5.7A current rating suits low-power setups

Applications

• Assembly lines
• Switchgear systems
• Consumer electronics

What's the benefit of the gold plating on this socket's contacts?

Gold plating improves the contacts' resistance to corrosion, ensuring consistently clear and reliable signals.

2.54mm Board to Board and Wire to Board - Samtec

Through Hole 2.54mm Square Post Sockets with Solder Tail - SSW Series - Single Row Footprint

SSW / SSQ Series Datasheet
