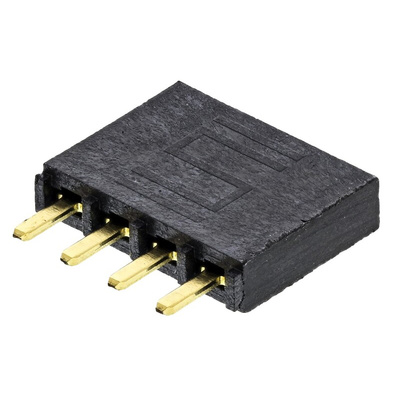

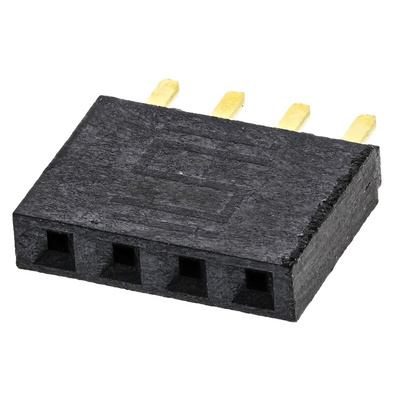

SSW-104-01-G-S, Samtec SSW Series Straight Through Hole Mount PCB Socket, 4-Contact, 1-Row, 2.54mm Pitch, Solder Termination

Samtec PCB Socket, Tiger Buy Contacts, Insulated - SSW Series - SSW-104-01-G-S

For snappy board-to-board connections, choose this PCB socket from Samtec. It's a flexible team player that makes it a cinch to change the arrangement of signal and power transmissions between circuit boards. The standard design of this module means it's a doddle to integrate into new setups or retrofit applications. The gold-plated phosphor bronze contacts are highly conductive and resistant to corrosion, which promotes efficiency by ensuring optimal electrical flow. A glass-filled polyester body offers effective insulation to protect you against electric shocks.

Features & Benefits

• Four contacts let you make multiple connections using only one module for versatility
• Compact pitch of 2.54mm to maximise board packing space
• Low insertion force helps to reduce friction and wear between mated parts for long-lasting use
• Through-hole mounting for a simple, vibration-resistant connection

Applications

• Medical and pharmaceutical manufacturing
• Industrial automation
• Electronics industry
• Automated assembly lines

What's the current rating of this PCB socket?

The unit has a current rating of 5.7A per pin, making it a suitable choice for automated industrial devices, such as relays and stepper motors.
