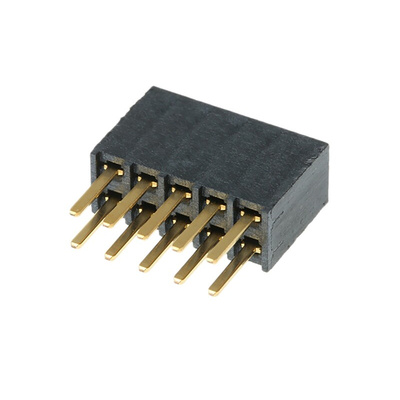

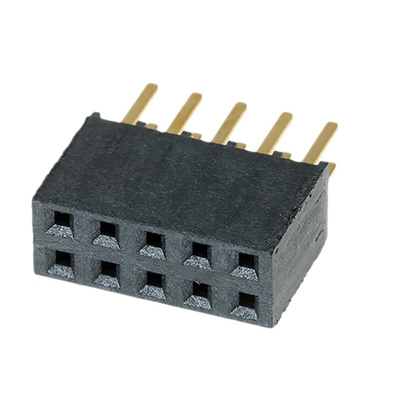

SSW-105-02-G-D, Samtec SSW Series Straight Through Hole Mount PCB Socket, 10-Contact, 2-Row, 2.54mm Pitch, Solder Termination

Samtec PCB Socket, 4.7A Contact Current Rating, 8Gbps Data Transfer Rate - SSW Series - SSW-105-02-G-D

Link your board-mounted systems together in a snap with this PCB socket from Samtec. The 10 contacts let you make multiple connections at once. It accepts a header with plug-in mating (767-0909), so no special tools are needed to install it. As it supports data transfer rates of up to 8Gbps, this connector ensures rapid-fire communication. The gold-plated bronze contacts are resistant to corrosion and highly conductive for dependable power connections. Thanks to the socket's simple through-hole mounting method, it slots securely onto your circuit board.

Features & Benefits

• Pitch of 2.54mm for broad compatibility with standard parts
• Service life of 100 mating cycles for long-term connectivity
• Plastic insulation to minimise exposure to hazardous electrical loads
• Works reliably in harsh environments, thanks to a wide operating temperature range between -55°C and +120°C

Applications

• Plastic processing
• Food production
• Control devices
• Machine building

How do I unplug my header from this socket?

Maintenance and equipment changeovers are easy with this socket, as you can simply release the mated connector with a light pull.
