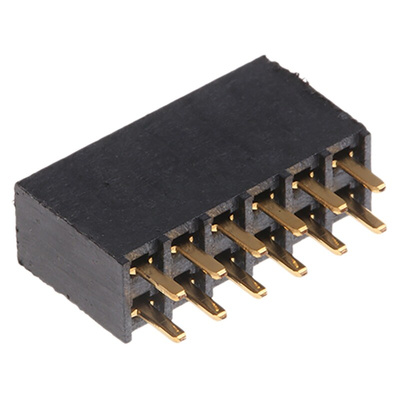

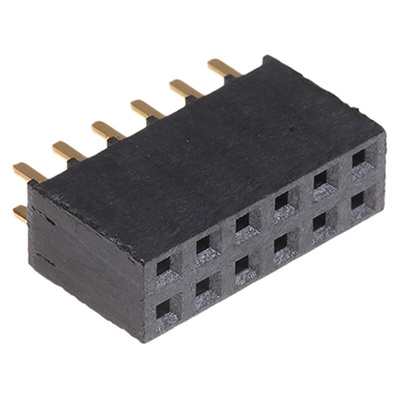

SSW-106-01-G-D, Samtec SSW Series Straight Through Hole Mount PCB Socket, 12-Contact, 2-Row, 2.54mm Pitch, Solder Termination

Through Hole 2.54mm Square Post Socket Strips with Solder Tail - SSW Series

SSW series PCB through hole board-to-board square post, solder tailed socket strips with a 2.54mm pitch and a black, liquid crystal polymer insulator. The Tiger Buy contacts of these 2.54mm PCB through hole sockets are made from phosphor bronze with 0.51μm gold plating on the contact and gold flash on the tail (apart from stock numbers 765-5739 and 765-5786 which have matte tin contacts). These PCB board to board 2.54mm through hole square post socket strips are available in a variety of configurations including single and double row, straight and right angle and an option of post lengths. The operating temperature range for these SSW series PCB through hole sockets is -55 to 125°C for gold plated versions and -55 to 105°C for matte tin versions.
SSW PCB sockets with part number TSW-xxx-01-x-x have a tail length of 2.64mm.
SSW PCB sockets with part number TSW-xxx-02-x-x have a tail length of 4.93mm.

Note

These SSW series PCB through hole board-to-board square post sockets mate with the following:
TSW series through hole 2.54mm square post headers - see stock number 767-0849 typically.
TSM series SMT 2.54mm square post headers - see stock number 765-6458 typically.

Samtec SSW Series PCB Socket, 6.9A, 12 Contacts - SSW-106-01-G-D

This Samtec straight PCB socket, part of the SSW series is a high quality socket specially designed for the automation, electronics, electrical, and mechanical industries. It offers exceptional performance and reliability, making it the ideal choice for a wide range of applications.

Features & Benefits

• Designed for board to board connections, ensuring secure and stable connections
• Straight body orientation for easy installation and space saving design
• Bronze contacts material for excellent conductivity and durability
• Through hole mounting type for added stability and reliability
• SSW series socket with 12 pins and 2.54mm pitch for versatile usage
• Solder termination method for efficient and secure soldering
• High voltage rating of 550V for safe operation in various applications

Applications

• Ideal for use in industrial automation systems for connecting PCBs
• Suitable for electronic control panels requiring secure board to board connections
• Used in electrical equipment for stable and reliable connections
• Perfect for automotive applications where high voltage connections are needed

Can the Samtec straight PCB socket handle high voltage applications?

Yes, the socket has a high voltage rating of 550V, making it suitable for various high voltage applications.

Will the bronze contact material ensure reliable conductivity?

The use of bronze contact material ensures excellent conductivity and long-lasting durability.

Is the solder termination method easy to use?

Yes, the solder termination method makes soldering the socket to the PCB quick and efficient.

Can the socket be used in automotive applications?

Yes, the Samtec straight PCB socket is perfect for automotive applications that require high voltage connections.

Is the through hole mounting type stable and secure?

The through hole mounting type provides stability and reliability in various applications.
