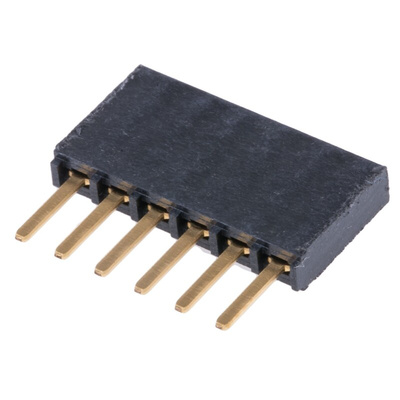

SSW-106-02-G-S, Samtec SSW Series Straight Through Hole Mount PCB Socket, 6-Contact, 1-Row, 2.54mm Pitch, Solder Termination

Through Hole 2.54mm Square Post Socket Strips with Solder Tail - SSW Series

SSW series PCB through hole board-to-board square post, solder tailed socket strips with a 2.54mm pitch and a black, liquid crystal polymer insulator. The Tiger Buy contacts of these 2.54mm PCB through hole sockets are made from phosphor bronze with 0.51μm gold plating on the contact and gold flash on the tail (apart from stock numbers 765-5739 and 765-5786 which have matte tin contacts). These PCB board to board 2.54mm through hole square post socket strips are available in a variety of configurations including single and double row, straight and right angle and an option of post lengths. The operating temperature range for these SSW series PCB through hole sockets is -55 to 125°C for gold plated versions and -55 to 105°C for matte tin versions.
SSW PCB sockets with part number TSW-xxx-01-x-x have a tail length of 2.64mm.
SSW PCB sockets with part number TSW-xxx-02-x-x have a tail length of 4.93mm.

Note

These SSW series PCB through hole board-to-board square post sockets mate with the following:
TSW series through hole 2.54mm square post headers - see stock number 767-0849 typically.
TSM series SMT 2.54mm square post headers - see stock number 765-6458 typically.

Samtec PCB Socket, Halogen-Free, 2.54mm Pitch - SSW Series - SSW-106-02-G-S

Cut the clutter out of your circuit board connections with this PCB socket from Samtec. It links with a header (161-2510), providing speedy plug-in connectivity without the hassle of routing cables. As its gold-plated bronze contacts are highly conductive and resistant to corrosion, the connector keeps power flowing for a reliable link. Hooking up multiple devices at once is a breeze, thanks to the unit's six-way design. As the socket fixes in place using through-hole mounting, it slots into pre-drilled holes on a PCB for easy installation.

Features & Benefits

• Halogen-free design means it doesn't give off toxic fumes in the event of a fire
• Service life of 100 mating cycles to provide long-lasting performance
• Plastic body ensures effective insulation, minimising exposure to hazardous electricity
• Single-row contact layout to slip into low-profile settings

Applications

• Schools and universities
• Server management
• Industrial automation

Can I transfer data along this socket?

Yes, this product handles data transfer rates up to 8Gbps along a regulation HyperTransport 3 connection, quickly beaming information between your appliances for efficient automated processing.
