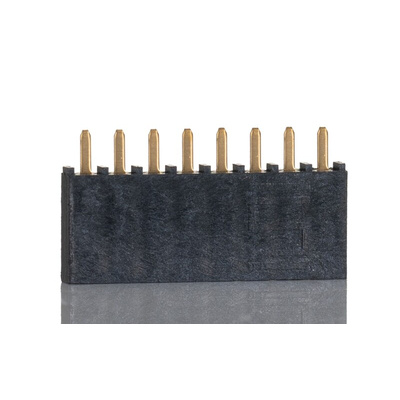

SSW-108-01-G-S, Samtec SSW Series Straight Through Hole Mount PCB Socket, 8-Contact, 1-Row, 2.54mm Pitch, Solder Termination

Samtec PCB Socket, Phosphor Bronze Contact Material, 5.7A Current Rating - SSW Series - SSW-108-01-G-S

Searching for a trusty go-between to link two circuit boards? Turn to this PCB socket from Samtec. It has eight phosphor bronze contacts that are highly conductive for a reliable connection. Gold plating ensures improved resistance to corrosion, so you can rest assured of long-term performance. The module's liquid crystal polymer insulation shields you from electrical hazards. For extra safety, the contacts have a spacing of 2.54mm between them to prevent sparks that may lead to fire outbreaks.

Features & Benefits

• Current rating of 5.7A makes it suitable for use in light-duty applications
• Safe to use in challenging settings, thanks to a wide operating temperature range between -55°C and +125°C
• Through-hole mounting offers a firm hold on the circuit board, meaning it's fit for use in vibrating systems
• Low insertion force of 0.8N saves effort during assembly

Applications

• Consumer electronics
• Transportation industry
• Medical equipment

How many operating cycles can this PCB socket handle?

This unit withstands up to 100 insertion and withdrawal cycles, so you can depend on it for the long haul.

2.54mm Board to Board and Wire to Board - Samtec

Through Hole 2.54mm Square Post Sockets with Solder Tail - SSW Series - Single Row Footprint

SSW / SSQ Series Datasheet
